ACTIVE
Number of channels |
2 |
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
100 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Supply current (max) (µA) |
20 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

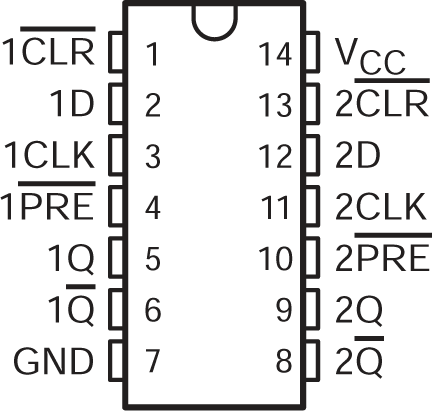

PDIP (N)-14-181.42 mm² 19.3 x 9.4
The ’AC74 devices are dual positive-edge-triggered D-type flip-flops.
