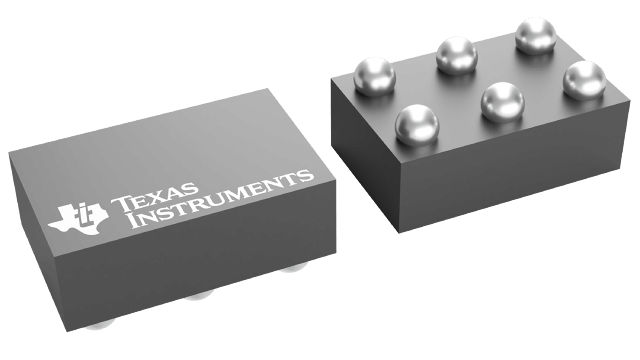

Texas Instruments SN74LVC2G07 Product Info

Parameters

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	32
Supply current (max) (µA)	10
IOH (max) (mA)	0
Input type	Standard CMOS
Output type	Open-drain
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

Package

DSBGA (YZP)-6-2.1875 mm² 1.75 x 1.25

Features

Dual Open-Drain Buffer Configuration
-24-mA Output Drive at 3.3 V
Support Translation-Up and Down
Available in the Texas Instruments
NanoFree™ Package
Supports 5-V V_CC Operation
Inputs and Open-Drain Outputs Accept Voltages
Up to 5.5 V
Max t_pd of 3.7 ns at 3.3 V
Low Power Consumption, 10-µA Max I_CC
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Dual Open-Drain Buffer Configuration
-24-mA Output Drive at 3.3 V
Support Translation-Up and Down
Available in the Texas Instruments
NanoFree™ Package
Supports 5-V V_CC Operation
Inputs and Open-Drain Outputs Accept Voltages
Up to 5.5 V
Max t_pd of 3.7 ns at 3.3 V
Low Power Consumption, 10-µA Max I_CC
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Description

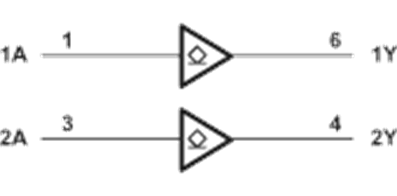

This dual buffer and driver is designed for 1.65-V to 5.5-V V_CC operation. The output of the SN74LVC2G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

This dual buffer and driver is designed for 1.65-V to 5.5-V V_CC operation. The output of the SN74LVC2G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
