0
ACTIVE
Technology family |
LVC |
Supply voltage (min) (V) |
1.1 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
1 |
Inputs per channel |
2 |
IOL (max) (mA) |
32 |
IOH (max) (mA) |
-32 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
X2SON (DTX)-5-0.935 mm² 1.1 x 0.85
AEC-Q100 qualified for automotive applications:
Device temperature grade 1: -40°C to +125°C

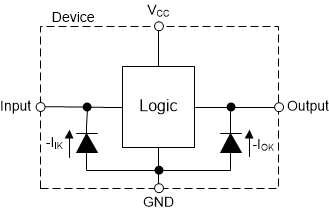

The SN74LVC1G08B-Q1 device is a single 2-input positive-AND gate with a Push-Pull output.
