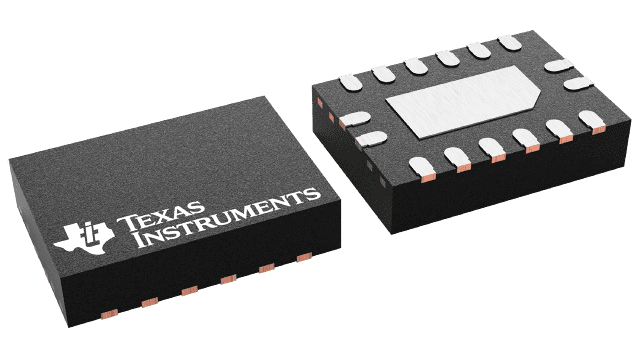

SN74ACT153
  • SN74ACT153
  • SN74ACT153
  • SN74ACT153

SN74ACT153

ACTIVE

Dual, 1.5V to 6V, 4-line to 1-line data selector/multiplexer with TTL compatible inputs

Texas Instruments SN74ACT153 Product Info

1 April 2026 0

Parameters

Technology family

ACT

Function

Digital Multiplexer

Configuration

4:1

Number of channels

2

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.2ns max
  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.2ns max

Description

The SN74ACT153 contains two 4-to-1 multiplexer/data selectors with shared control logic.

The SN74ACT153 contains two 4-to-1 multiplexer/data selectors with shared control logic.
