ACTIVE
Number of channels |
1 |
Vs (max) (V) |
36 |
Vs (min) (V) |
2.7 |
Input offset (±) (max) (µV) |
250 |
Voltage gain (min) (V/V) |
4 |
Voltage gain (max) (V/V) |
10000 |
Noise at 1 kHz (typ) (nV√Hz) |
38 |
Features |
Overvoltage protection |
CMRR (min) (dB) |
100 |
Input offset drift (±) (max) (µV/°C) |
2 |
Input bias current (±) (max) (nA) |
25 |
Iq (typ) (mA) |
0.46 |
Bandwidth at min gain (typ) (MHz) |
0.15 |
Gain error (±) (max) (%) |
0.5 |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |
Type |
Resistor |
Gain nonlinearity (±) (max) (%) |
0.004 |
Output swing headroom (to negative supply) (typ) (V) |
0.4 |
Output swing headroom (to positive supply) (typ) (V) |
-0.9 |
Input common mode headroom (to negative supply) (typ) (V) |
4.3 |
Input common mode headroom (to positive supply) (typ) (V) |
-4.8 |
Noise at 0.1 Hz to 10 Hz (typ) (µVPP) |
0.8 |

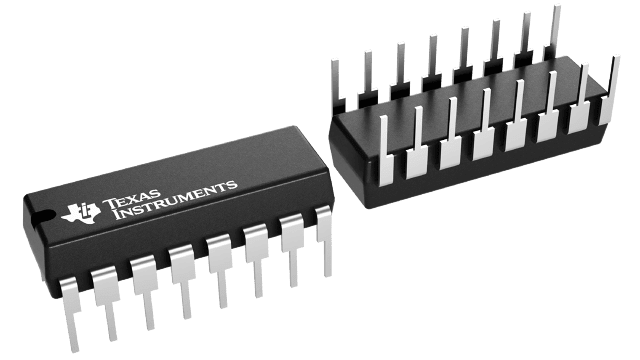

PDIP (N)-16-181.42 mm² 19.3 x 9.4
The INA125 is a low power, high accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit.
A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies.
The voltage reference is externally adjustable with pin-selectable voltages of 2.5V, 5V, or 10V, allowing use with a variety of transducers. The reference voltage is accurate to ±0.5% (max) with ±35ppm/°C drift (max). Sleep mode allows shutdown and duty cycle operation to save power.
The INA125 is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the -40°C to +85°C industrial temperature range.
