ACTIVE
Technology family |
LVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
1 |
IOL (max) (mA) |
32 |
IOH (max) (mA) |
0 |
Supply current (max) (µA) |
10 |
Input type |
Standard CMOS |
Output type |
Open-drain |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

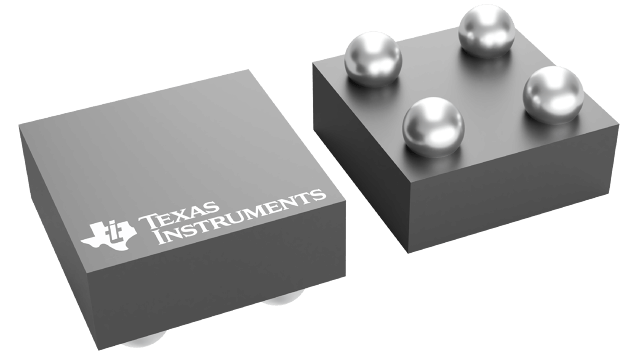

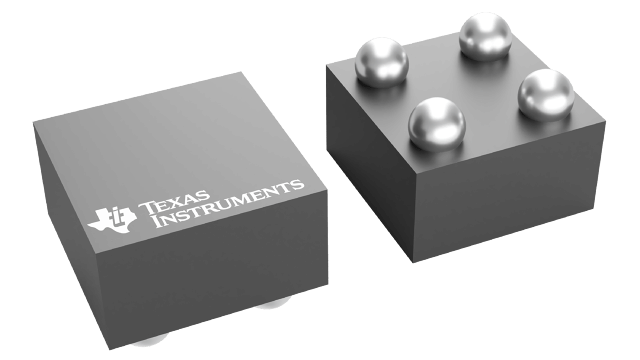

DSBGA (YZP)-5-2.1875 mm² 1.75 x 1.25
This single inverter buffer and driver is designed for 1.65V to 5.5V VCC operation.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
The output of the SN74LVC1G06 device is open-drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32mA.
This device is fully specified for partial-power-down applications using Ioff.The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
