Texas Instruments DP83847 Product Info

Parameters

Datarate (Mbps)	10/100
Interface type	MII
Rating	Catalog
Number of ports	Single
Features	5-V tolerant I/Os
Supply voltage (V)	3.3
I/O supply voltage (typ) (V)	3.3
Operating temperature range (°C)	0 to 70
Number of LEDs	6
ESD HBM (kV)	1

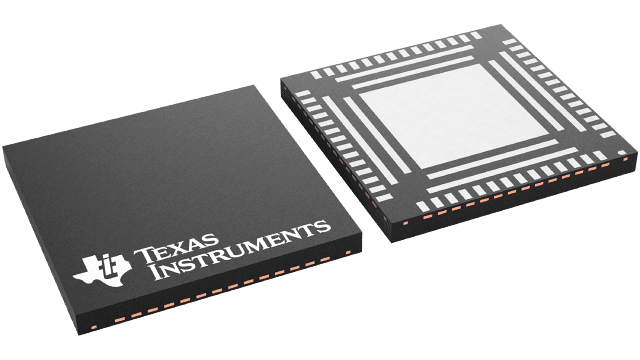

Package

WQFN (NJZ)-56-81 mm² 9 x 9

Features

Low-power 3.3V, 0.18um CMOS technology
Power consumption < 351mW (typical)
5V tolerant I/Os
5V/3.3V MAC interface
IEEE 802.3 ENDEC, 10BASE-T transceivers and filters
IEEE 802.3u PCS, 100BASE-TX transceivers and filters
IEEE 802.3 compliant Auto-Negotiation
Output edge rate control eliminates external filtering for Transmit outputs
BaseLine Wander compensation
IEEE 802.3u MII (16 pins/port)
LED support (Link, Rx, Tx, Duplex, Speed, Collision)
Single register access for complete PHY status
10/100 Mb/s packet loopback BIST (Built in Self Test)
56-pin LLP package (9w) x (9l) x (.75h) mm

PHYTER® is a registered trademark of National Semiconductor Corporation.

Low-power 3.3V, 0.18um CMOS technology
Power consumption < 351mW (typical)
5V tolerant I/Os
5V/3.3V MAC interface
IEEE 802.3 ENDEC, 10BASE-T transceivers and filters
IEEE 802.3u PCS, 100BASE-TX transceivers and filters
IEEE 802.3 compliant Auto-Negotiation
Output edge rate control eliminates external filtering for Transmit outputs
BaseLine Wander compensation
IEEE 802.3u MII (16 pins/port)
LED support (Link, Rx, Tx, Duplex, Speed, Collision)
Single register access for complete PHY status
10/100 Mb/s packet loopback BIST (Built in Self Test)
56-pin LLP package (9w) x (9l) x (.75h) mm

PHYTER® is a registered trademark of National Semiconductor Corporation.

Description

The DP83847 is a full feature single Physical Layer device with integrated PMD sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols over Category 3 (10 Mb/s) or Category 5 unshielded twisted pair cables.

The DP83847 is designed for easy implementation of 10/100 Mb/s Ethernet home or office solutions. It interfaces to Twisted Pair media via an external transformer. This device interfaces directly to MAC devices through the IEEE 802.3u standard Media Independent Interface (MII) ensuring interoperability between products from different vendors.

The DP83847 utilizes on chip Digital Signal Processing (DSP) technology and digital Phase Lock Loops (PLLs) for robust performance under all operating conditions, enhanced noise immunity, and lower external component count when compared to analog solutions.

The DP83847 is a full feature single Physical Layer device with integrated PMD sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols over Category 3 (10 Mb/s) or Category 5 unshielded twisted pair cables.

The DP83847 is designed for easy implementation of 10/100 Mb/s Ethernet home or office solutions. It interfaces to Twisted Pair media via an external transformer. This device interfaces directly to MAC devices through the IEEE 802.3u standard Media Independent Interface (MII) ensuring interoperability between products from different vendors.

The DP83847 utilizes on chip Digital Signal Processing (DSP) technology and digital Phase Lock Loops (PLLs) for robust performance under all operating conditions, enhanced noise immunity, and lower external component count when compared to analog solutions.
