ACTIVE
Bits (#) |
8 |
Data rate (max) (Mbps) |
150 |
Topology |
Open drain |
Direction control (typ) |
Fixed-direction |
Output drive capability (max) (mA) |
8000 |
Vin (min) (V) |
1.65 |
Vin (max) (V) |
5.5 |
Vout (min) (V) |
1.65 |
Vout (max) (V) |
5.5 |
Applications |
GPIO |
Features |
Output enable, Single supply, Wettable flanks package |
Prop delay (ns) |
13.7 |
Technology family |
LVxT |
Supply current (max) (mA) |
1.5 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |

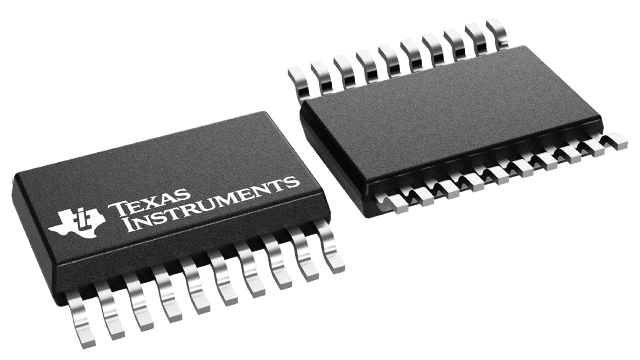

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

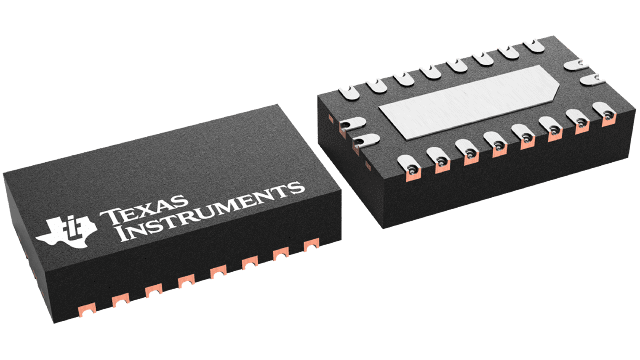

Available in Wettable Flanks QFN package

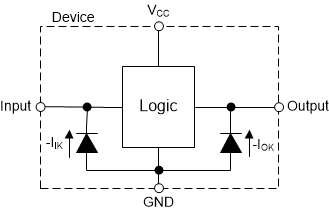

The SN74LV8T7541-Q1 is an octal buffer with opendrain outputs.
The input is designed with a reduced threshold circuit to support up translation when the supply voltage is larger than the input voltage. Additionally, the 5V tolerant input pins enable down translation when the input voltage is larger than the supply voltage. The output level is always referenced to the supply voltage (VCC) and supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels.
