0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
5 |
Slew rate (typ) (V/µs) |
5.8 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Iq per channel (typ) (mA) |
1.6 |

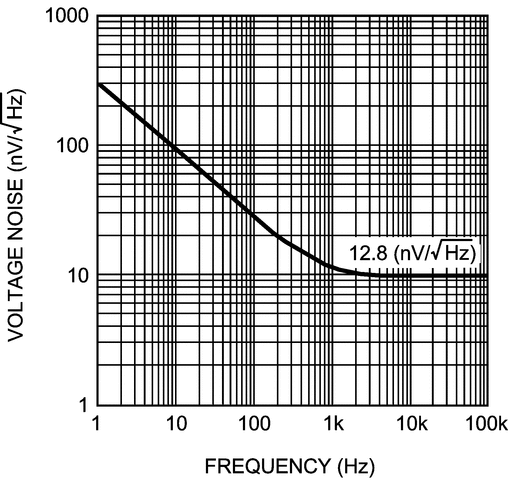

Vn at 1 kHz (typ) (nV√Hz) |
12.8 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
5 |
Input bias current (max) (pA) |
115 |
CMRR (typ) (dB) |
80 |
Iout (typ) (A) |
0.031 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
-1 |
Output swing headroom (to negative supply) (typ) (V) |
0.03 |
Output swing headroom (to positive supply) (typ) (V) |
-0.02 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9
All trademarks are the property of their respective owners.

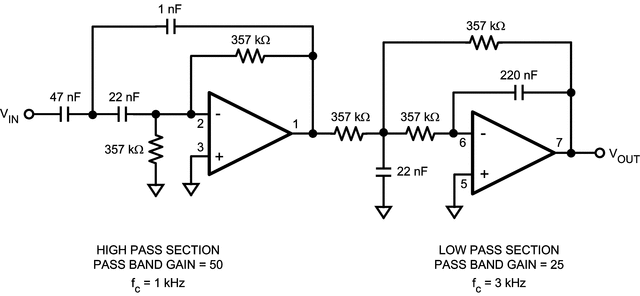

The LMV716 is a dual operational amplifier with both low supply voltage and low supply current, making it ideal for portable applications. The LMV716 CMOS input stage drives the IBIAS current down to 0.6 pA; this coupled with the low noise voltage of 12.8 nV/√Hz makes the LMV716 perfect for applications requiring active filters, transimpedance amplifiers, and HDD vibration cancellation circuitry.
Along with great noise sensitivity, small signal applications will benefit from the large gain bandwidth of 5 MHz coupled with the minimal supply current of 1.6 mA and a slew rate of 5.8 V/μs.
The LMV716 provides rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, which is ideal for ground sensing applications.
The LMV716 has a supply voltage spanning 2.7V to 5V and is offered in an 8-pin VSSOP package that functions across the wide temperature range of −40°C to 85°C. This small package makes it possible to place the LMV716 next to sensors, thus reducing external noise pickup.
