SN74LV32A

ACTIVE

Texas Instruments SN74LV32A Product Info

1 April 2026 0

Technology family	LV-A
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Number of channels	4
Inputs per channel	2
IOL (max) (mA)	12
IOH (max) (mA)	-12
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Data rate (max) (Mbps)	70
Rating	Catalog
Operating temperature range (°C)	-40 to 125

SOIC (D)-14-51.9 mm² 8.65 x 6

2-V to 5.5-V V_CC Operation
Max t_pd of 6.5 ns at 5 V
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2.3 V at V_CC = 3.3 V, T_A = 25°C
Support Mixed-Mode Voltage Operation on
All Ports
I_off Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

2-V to 5.5-V V_CC Operation
Max t_pd of 6.5 ns at 5 V
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2.3 V at V_CC = 3.3 V, T_A = 25°C
Support Mixed-Mode Voltage Operation on
All Ports
I_off Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

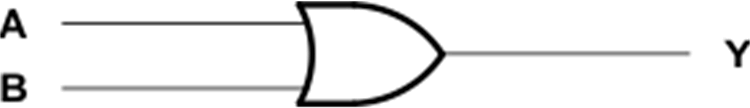

This quadruple 2-input positive-OR gates is designed for 2-V to 5.5-V V_CC operation.

The SN74LV32A device performs the Boolean function A + B or Y = A B in positive logic.

This quadruple 2-input positive-OR gates is designed for 2-V to 5.5-V V_CC operation.

The SN74LV32A device performs the Boolean function A + B or Y = A B in positive logic.
