Texas Instruments CC1020 Product Info

Parameters

Protocols	Proprietary
Modulation scheme	2(G)FSK, ASK, OOK
Frequency bands	402-470, 803-930
Type	Transceiver
TX power (max) (dBm)	10
Peripherals	Serial interface
Sensitivity (best) (dBm)	-118
RX current (lowest) (mA)	19.9
Data rate (max) (Mbps)	0.1536
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Edge AI enabled	No

Package

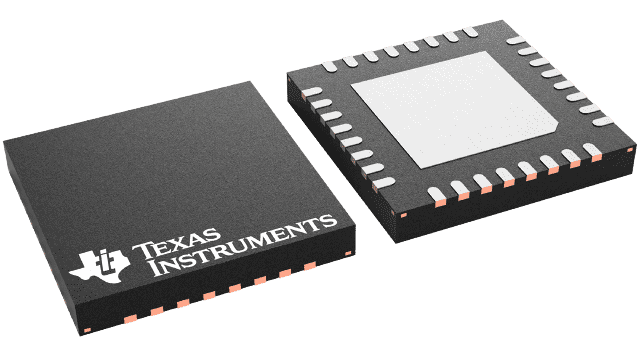

VQFN (RSS)-32-49 mm² 7 x 7

Features

True Single Chip UHF RF Transceiver
Frequency Range 402 MHz to 470 MHz
and 804 MHz to 930 MHz
High Sensitivity
- Up to –118 dBm for a 12.5 kHz Channel
Programmable Output Power
Low Current Consumption
- RX: 19.9 mA
Low Supply Voltage
- 2.3 V to 3.6 V
No External IF Filter Needed
Low-IF Receiver
Very Few External Components Required
Small Size
- QFN 32 Package
Pb-Free Package
Digital RSSI and Carrier Sense Indicator
Data Rate up to 153.6 kBaud
OOK, FSK, and GFSK Data Modulation
Integrated Bit Synchronizer
Image Rejection Mixer
Programmable Frequency and AFC Make Crystal Temperature Drift Compensation Possible Without TCXO
Suitable for Frequency Hopping Systems
Suited for Systems Targeting Compliance With
EN 300 220, FCC CFR47 Part 15, and
ARIB STD-T67
Easy-to-Use Software for Generating the CC1020 Configuration Data

True Single Chip UHF RF Transceiver
Frequency Range 402 MHz to 470 MHz
and 804 MHz to 930 MHz
High Sensitivity
- Up to –118 dBm for a 12.5 kHz Channel
Programmable Output Power
Low Current Consumption
- RX: 19.9 mA
Low Supply Voltage
- 2.3 V to 3.6 V
No External IF Filter Needed
Low-IF Receiver
Very Few External Components Required
Small Size
- QFN 32 Package
Pb-Free Package
Digital RSSI and Carrier Sense Indicator
Data Rate up to 153.6 kBaud
OOK, FSK, and GFSK Data Modulation
Integrated Bit Synchronizer
Image Rejection Mixer
Programmable Frequency and AFC Make Crystal Temperature Drift Compensation Possible Without TCXO
Suitable for Frequency Hopping Systems
Suited for Systems Targeting Compliance With
EN 300 220, FCC CFR47 Part 15, and
ARIB STD-T67
Easy-to-Use Software for Generating the CC1020 Configuration Data

Description

The CC1020 device is a true single-chip UHF transceiver designed for very low-power and very low-voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868, and 915 MHz, but can easily be programmed for multichannel operation at other frequencies in the 402- to 470-MHz and 804- to 930-MHz range.

The CC1020 device is especially suited for narrow-band systems with channel spacing of 12.5 or 25 kHz complying with ARIB STD-T67 and EN 300 220.

The main operating parameters of the CC1020 device can be programmed with a serial bus, thus making the CC1020 device a very flexible and easy-to-use transceiver.

In a typical system, the CC1020 device will be used together with a microcontroller and a few external passive components.

TI recommends using the latest RF performance line device CC1120 as successor of the CC1020 device: www.ti.com/rfperformanceline.

The CC1020 device is a true single-chip UHF transceiver designed for very low-power and very low-voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868, and 915 MHz, but can easily be programmed for multichannel operation at other frequencies in the 402- to 470-MHz and 804- to 930-MHz range.

The CC1020 device is especially suited for narrow-band systems with channel spacing of 12.5 or 25 kHz complying with ARIB STD-T67 and EN 300 220.

The main operating parameters of the CC1020 device can be programmed with a serial bus, thus making the CC1020 device a very flexible and easy-to-use transceiver.

In a typical system, the CC1020 device will be used together with a microcontroller and a few external passive components.

TI recommends using the latest RF performance line device CC1120 as successor of the CC1020 device: www.ti.com/rfperformanceline.
