Texas Instruments SN74LV10A Product Info

Parameters

Technology family	LV-A
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Number of channels	3
Inputs per channel	3
IOL (max) (mA)	12
IOH (max) (mA)	-12
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Data rate (max) (Mbps)	70
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

V_CC operation of 2 V to 5.5 V
Max t_pd of 7 ns at 5 V
Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot) >2.3 V at V_CC = 3.3 V, TA = 25°C
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

V_CC operation of 2 V to 5.5 V
Max t_pd of 7 ns at 5 V
Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot) >2.3 V at V_CC = 3.3 V, TA = 25°C
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Description

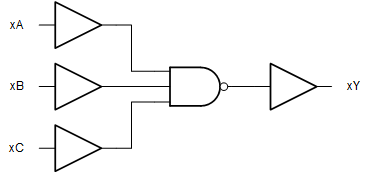

These triple 3-input positive-NAND gates are designed for 2 V to 5.5 V V_CC operation. The SN74LV10A devices perform the Boolean function Y = A • B • C in positive logic. These devices are fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
