TPS22995
  • TPS22995
  • TPS22995
  • TPS22995

TPS22995

ACTIVE

5.5-V 3.5-A 20-mΩ on-resistance load switch with adjustable rise time

Texas Instruments TPS22995 Product Info

1 April 2026 0

Parameters

Imax (A)

3.8

Vin (max) (V)

5.5

Vin (min) (V)

0.4

Number of channels

1

Features

Inrush current control, Quick output discharge, Thermal shutdown

Quiescent current (Iq) (typ) (µA)

10

Soft start

Adjustable Rise Time

Rating

Catalog

Ron (typ) (mΩ)

18

Shutdown current (ISD) (typ) (µA)

0.1

Current limit type

None

Function

Inrush current control, Thermal shutdown

Operating temperature range (°C)

-40 to 125

Device type

Load switches

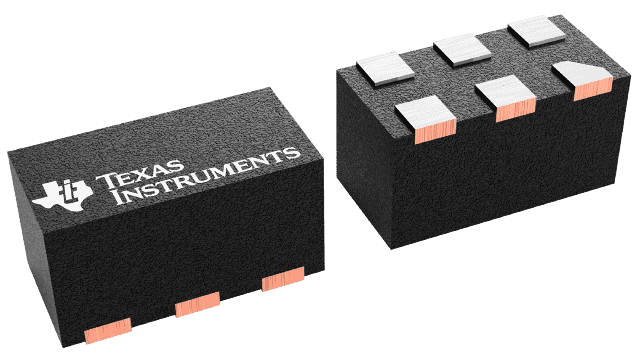

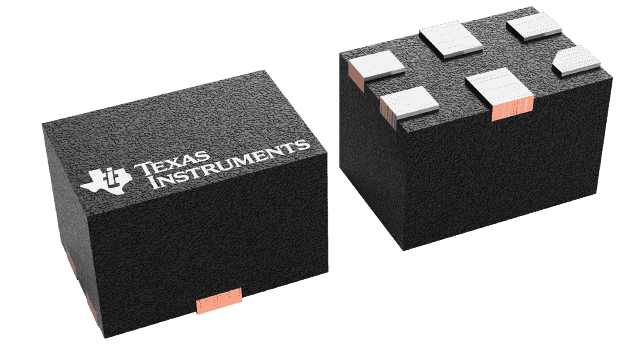

Package

WQFN-HR (RZF)-6-1.0625 mm² 1.25 x 0.85

Features

  • Input operating voltage range (VIN): 0.4 V – 5.5 V
  • Bias voltage supply (VBIAS): 1.5 V – 5.5 V
  • Maximum continuous current: 3.8 A
  • On-resistance (RON): 18 mΩ (typ.)
  • Adjustable slew rate control through external capacitor
  • Quick Output Discharge (QOD): 100 Ω (typ.)
  • Thermal shutdown
  • Smart ON pin pulldown (RPD,ON):
    • ON ≥ VIH (ION): 25 nA (max.)
    • ON ≤ VIL (RPD,ON): 500 kΩ (typ.)
  • Low power consumption:
    • ON state (IQ): 10 uA (typ.)
    • OFF state (ISD): 0.1 uA (typ.)
  • Input operating voltage range (VIN): 0.4 V – 5.5 V
  • Bias voltage supply (VBIAS): 1.5 V – 5.5 V
  • Maximum continuous current: 3.8 A
  • On-resistance (RON): 18 mΩ (typ.)
  • Adjustable slew rate control through external capacitor
  • Quick Output Discharge (QOD): 100 Ω (typ.)
  • Thermal shutdown
  • Smart ON pin pulldown (RPD,ON):
    • ON ≥ VIH (ION): 25 nA (max.)
    • ON ≤ VIL (RPD,ON): 500 kΩ (typ.)
  • Low power consumption:
    • ON state (IQ): 10 uA (typ.)
    • OFF state (ISD): 0.1 uA (typ.)

Description

A capacitor to GND on the CT pin sets the slew rate, and the higher the Capacitor the higher the slew rate. Rise times are shown below.The following equation can be used to estimate the rise time for different VIN and CT capacitors:

tR = (0.3418VIN + 0.1036) × CT + 14.064VIN + 12.255

where

  • tR = Rise time in µs.
  • VIN = Input voltage in V.
  • CT = CT Capacitor in pF.

A capacitor to GND on the CT pin sets the slew rate, and the higher the Capacitor the higher the slew rate. Rise times are shown below.The following equation can be used to estimate the rise time for different VIN and CT capacitors:

tR = (0.3418VIN + 0.1036) × CT + 14.064VIN + 12.255

where

  • tR = Rise time in µs.
  • VIN = Input voltage in V.
  • CT = CT Capacitor in pF.
