SN74HCT373
  • SN74HCT373
  • SN74HCT373
  • SN74HCT373
  • SN74HCT373
  • SN74HCT373

SN74HCT373

ACTIVE

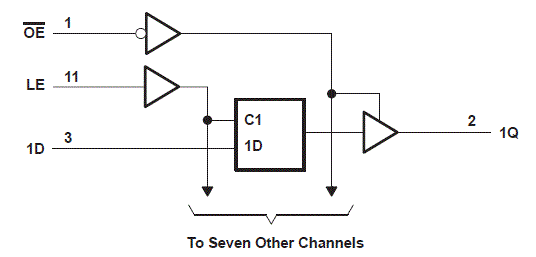

Octal Transparent D-Type Latches With 3-State Outputs

Texas Instruments SN74HCT373 Product Info

1 April 2026 0

Parameters

Number of channels

8

Technology family

HCT

Supply voltage (min) (V)

4.5

Supply voltage (max) (V)

5.5

Input type

TTL-Compatible CMOS

Output type

3-State

Clock frequency (max) (MHz)

25

IOL (max) (mA)

6

IOH (max) (mA)

-6

Supply current (max) (µA)

80

Features

Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode

Operating temperature range (°C)

-40 to 85

Rating

Catalog

Package

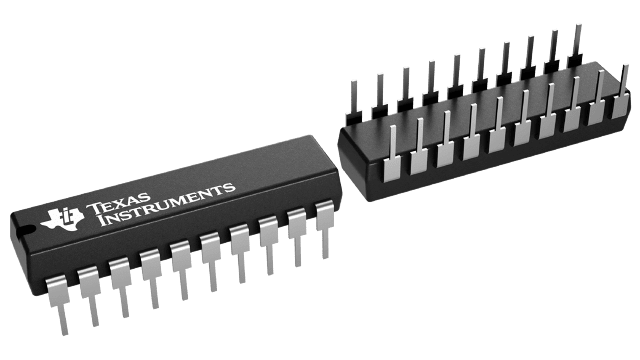

PDIP (N)-20-228.702 mm² 24.33 x 9.4

Features

  • Operating voltage range of 4.5 V to 5.5 V
  • High-current 3-state true outputs can drive up to 15 LSTTL loads
  • Low power consumption, 80-µA max ICC
  • Typical tpd =21 ns
  • ±6-mA output drive at 5 V
  • Low input current of 1 µA max
  • Inputs are TTL-voltage compatible
  • Eight high-current latches in a single package
  • Full parallel access for loading
  • Operating voltage range of 4.5 V to 5.5 V
  • High-current 3-state true outputs can drive up to 15 LSTTL loads
  • Low power consumption, 80-µA max ICC
  • Typical tpd =21 ns
  • ±6-mA output drive at 5 V
  • Low input current of 1 µA max
  • Inputs are TTL-voltage compatible
  • Eight high-current latches in a single package
  • Full parallel access for loading

Description

SN74HCT373:Octal Transparent D-Type Latches With 3-State Outputs.Package:PDIP (N)-20-228.702 mm² 24.33 x 9.4
