DLP800RE
  • DLP800RE
  • DLP800RE

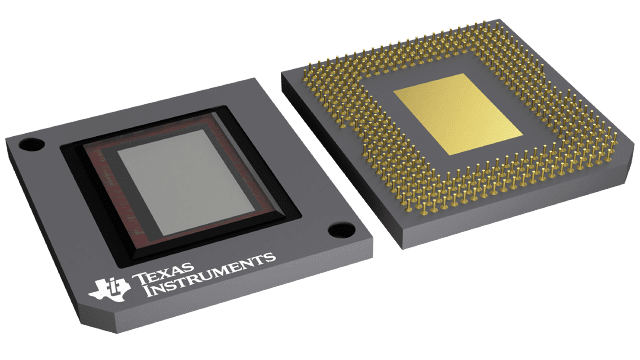

DLP800RE

ACTIVE

0.80-inch WUXGA DLP® digital micromirror device (DMD)

Texas Instruments DLP800RE Product Info

1 April 2026 5

Parameters

Display resolution (max)

WUXGA (1920x1200)

System brightness (max) (lm)

7000

Array diagonal (in)

0.8

Chipset family

DLPA300, DLPC4430

Micromirror array size

1920x1200

Micromirror pitch (mm)

0.009

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

DLP-S600 (FYV)-350-1127 mm² 35 x 32.2

Features

  • 0.8-inch diagonal micromirror array
    • WUXGA (1920 × 1200) display resolution
    • 9.0-µm micromirror pitch
    • ±14.5° micromirror tilt
    • Corner illumination
  • 2xLVDS input data bus
  • Supports WUXGA up to 120Hz
  • LED, laser-phosphor, and RGB laser supported by DLPC4430 display controller, DLPA100 power management and motor driver IC
  • 0.8-inch diagonal micromirror array
    • WUXGA (1920 × 1200) display resolution
    • 9.0-µm micromirror pitch
    • ±14.5° micromirror tilt
    • Corner illumination
  • 2xLVDS input data bus
  • Supports WUXGA up to 120Hz
  • LED, laser-phosphor, and RGB laser supported by DLPC4430 display controller, DLPA100 power management and motor driver IC

Description

The DLP800RE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright WUXGA solid-state illuminated display systems. The TI DLP 0.8-inch WUXGA chipset comprises the DMD, DLPC4430 display controller, DLPA300 micromirror driver, and DLPA100 power and motor driver. The compact physical size of the chipset provides a complete system that enables small form factor WUXGA displays with solid-state illumination.

To help accelerate the design cycle, the DMD ecosystem includes established resources, which include production ready optical modules, optical module manufacturers, and design houses.

To learn more about how to start designing with the DMD, visit the Getting Started with TI DLP display technology page.
