0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
44 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
0.5 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Iq per channel (typ) (mA) |
1.7 |
Vn at 1 kHz (typ) (nV√Hz) |
30 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Offset drift (typ) (µV/°C) |
15 |
Input bias current (max) (pA) |
210000 |
CMRR (typ) (dB) |
90 |
Iout (typ) (A) |
0.025 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
3 |
Input common mode headroom (to positive supply) (typ) (V) |
-3 |
Output swing headroom (to negative supply) (typ) (V) |
3 |
Output swing headroom (to positive supply) (typ) (V) |
-3 |

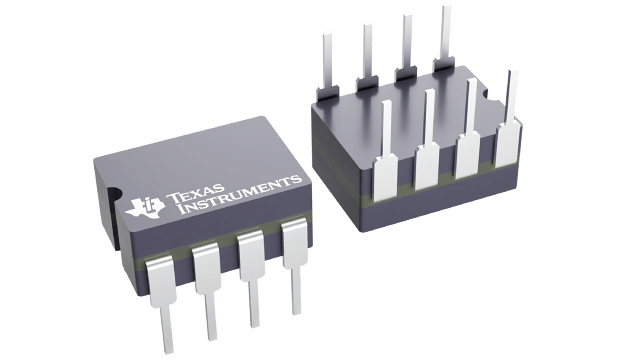

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87
The amplifier offers many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations
All trademarks are the property of their respective owners.
The LM741 is a general purpose operational amplifier which features improved performance over industry standards such as the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications.
