ACTIVE
Number of channels |
2 |
Vrwm (V) |
24 |
Bi-/uni-directional |
Bi-directional |
Package name |
SC70-3, SOT-23-3 |
Peak pulse power (8/20 μs) (max) (W) |
210 |
IO capacitance (typ) (pF) |
3 |
IEC 61000-4-2 contact (±V) |
30000 |
IEC 61000-4-5 (A) |
5.7 |
Clamping voltage (V) |
35 |
Dynamic resistance (typ) |
0.35 |
Interface type |
CAN, GPIO |
Breakdown voltage (min) (V) |
25.5 |
IO leakage current (max) (nA) |
50 |
Rating |
Automotive |
Operating temperature range (°C) |
-55 to 150 |

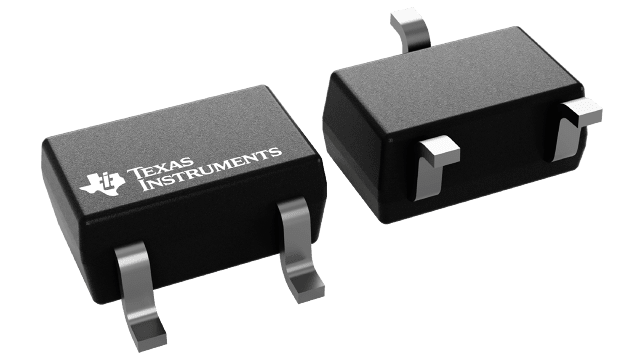

SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37
The ESD2CANxx24-Q1 is a bidirectional ESD protection diode for Controller Area Network (CAN) interface protection. The ESD2CANxx24-Q1 is rated to dissipate contact ESD strikes beyond the maximum level specified in the ISO 10605 automotive standard (±30-kV Contact, ±30-kV Airgap). The low dynamic resistance and low clamping voltage enables system level protection against transient events. This protection is key as automotive systems require a high level of robustness and reliability for safety applications.
This device features a low IO capacitance per channel and a pin-out to suit two automotive CAN bus lines (CANH and CANL) from the damage caused by ElectroStatic Discharge (ESD) and other transients. Additionally, the 3 pF (typical) or less line capacitance of the ESD2CANxx24-Q1 is suitable for CAN, CANFD, CAN SiC, and CAN-XL applications that can support data rates up to 10 Mbps.
The ESD2CANxx24-Q1 is offered in two leaded packages for easy flow through routing.
