Texas Instruments SN74HCS125 Product Info

Parameters

Technology family	HCS
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Number of channels	4
IOL (max) (mA)	7.8
Supply current (max) (µA)	2
IOH (max) (mA)	-7.8
Input type	Schmitt-Trigger
Output type	3-State
Features	Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

Wide operating voltage range: 2 V to 6 V

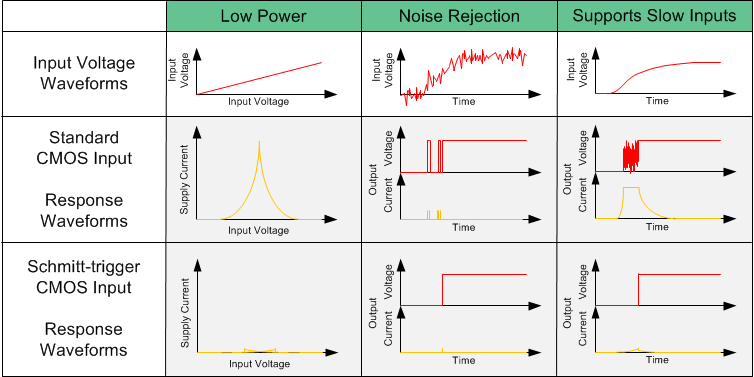

Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Wide operating voltage range: 2 V to 6 V
Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Description

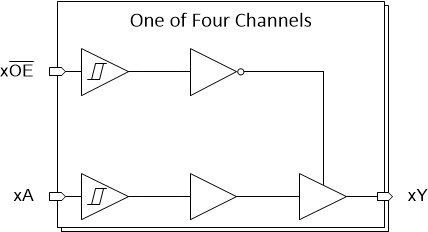

The SN74HCS125 contains four independent buffers with 3-state outputs and Schmitt-trigger inputs. Each buffer performs the Boolean function Y = A in positive logic. The outputs can be put into a Hi-Z state by applying a High on the OE pin.
