ACTIVE
Protocols |
Analog, I2C, I2S, JTAG, RGMII, SPI, TDM, UART |
Configuration |
1:1 SPST |
Number of channels |
4 |
Bandwidth (MHz) |
500 |
Supply voltage (max) (V) |
3.6 |
Ron (typ) (mΩ) |
4000 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
5.5 |
Supply current (typ) (µA) |
2000 |
Operating temperature range (°C) |
-40 to 85 |
ESD CDM (kV) |
1 |
Input/output continuous current (max) (mA) |
64 |
COFF (typ) (pF) |
4 |
CON (typ) (pF) |
8 |
OFF-state leakage current (max) (µA) |
1 |
Ron (max) (mΩ) |
9000 |
Turnoff time (disable) (max) (ns) |
5.3 |
Turnon time (enable) (max) (ns) |
6.6 |
VIH (min) (V) |
1.7 |
VIL (max) (V) |
0.8 |
Rating |
Catalog |

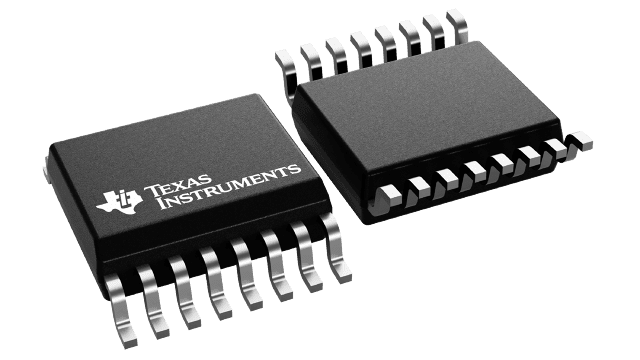

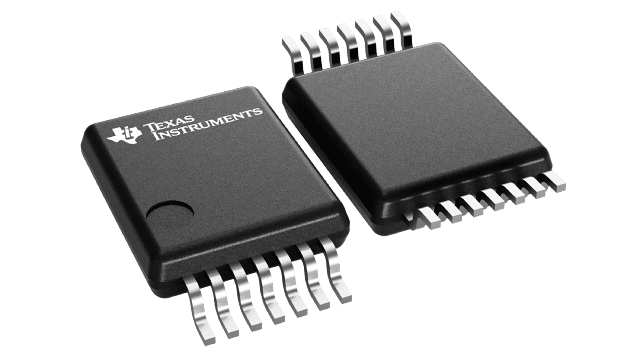

SSOP (DBQ)-16-29.4 mm² 4.9 x 6

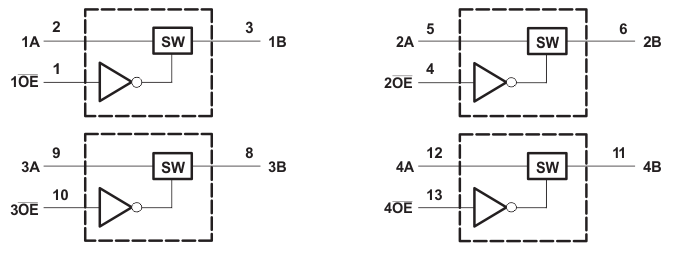

The SN74CB3Q3125 device is a high-bandwidth FET bus switch that uses a charge pump to elevate the gate voltage of the pass transistor, thus providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The SN74CB3Q3125 device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus.
