ACTIVE
Architecture |
Current FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
30 |
GBW (typ) (MHz) |
130 |
BW at Acl (MHz) |
130 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
1500 |
Vn at flatband (typ) (nV√Hz) |
2.5 |
Vn at 1 kHz (typ) (nV√Hz) |
2.5 |
Iq per channel (typ) (mA) |
3.5 |
Vos (offset voltage at 25°C) (max) (mV) |
10 |
Rail-to-rail |
No |
Features |
Shutdown |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
70 |
Input bias current (max) (pA) |
4000000 |
Offset drift (typ) (µV/°C) |
10 |
Iout (typ) (mA) |
475 |
2nd harmonic (dBc) |
51 |
3rd harmonic (dBc) |
50 |
Frequency of harmonic distortion measurement (MHz) |
10 |
HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
, VO = 8 VPP))All trademarks are the property of their respective owners.
The THS3120 and THS3121 are low-noise, high-voltage, high output current drive, current-feedback amplifiers designed to operate over a wide supply range of ±5 V to ±15 V for today's high-performance applications.
The THS3120 offers a power saving mode by providing a power-down pin for reducing the 7-mA quiescent current of the device, when the device is not active.
These amplifiers provide well-regulated ac performance characteristics. Most notably, the 0.1-dB flat bandwidth is exceedingly high, reaching beyond 90 MHz. The unity-gain bandwidth of 130 MHz allows for good distortion characteristics at 10 MHz. Coupled with high 1700-V/µs slew rate, the THS3120 and THS3121 amplifiers allow for high output voltage swings at high frequencies.

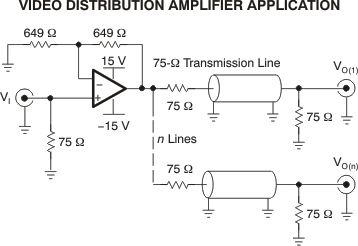

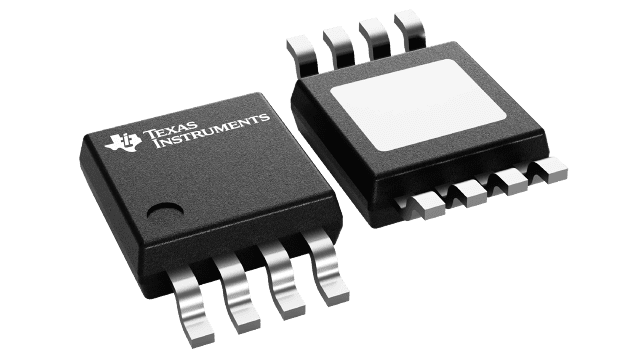

The THS3120 and THS3121 are offered in an SOIC-8 (D) package and an MSOP-8 (DGN) PowerPAD package.
