SN74HCS05

ACTIVE

6-ch, 2-V to 6-V inverters with Schmitt-Trigger inputs and open-drain outputs

Texas Instruments SN74HCS05 Product Info

1 April 2026 0

Parameters

Technology family

HCS

Supply voltage (min) (V)

2

Supply voltage (max) (V)

6

Number of channels

6

IOL (max) (mA)

7.8

IOH (max) (mA)

0

Supply current (max) (µA)

2

Input type

Schmitt-Trigger

Output type

Open-drain

Features

High speed (tpd 10-50ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • Wide operating voltage range: 2 V to 6 V
  • Schmitt-trigger inputs allow for slow or noisy input signals
  • Low power consumption
    • Typical ICC of 100 nA
    • Typical input leakage current of ±100 nA
  • ±7.8-mA output drive at 5 V
  • Extended ambient temperature range: –40°C to +125°C, TA
  • Wide operating voltage range: 2 V to 6 V
  • Schmitt-trigger inputs allow for slow or noisy input signals
  • Low power consumption
    • Typical ICC of 100 nA
    • Typical input leakage current of ±100 nA
  • ±7.8-mA output drive at 5 V
  • Extended ambient temperature range: –40°C to +125°C, TA

Description

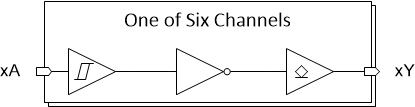

This device contains six independent inverter with open-drain outputs and Schmitt-trigger inputs. Each gate performs the Boolean function Y = A in positive logic.

This device contains six independent inverter with open-drain outputs and Schmitt-trigger inputs. Each gate performs the Boolean function Y = A in positive logic.
