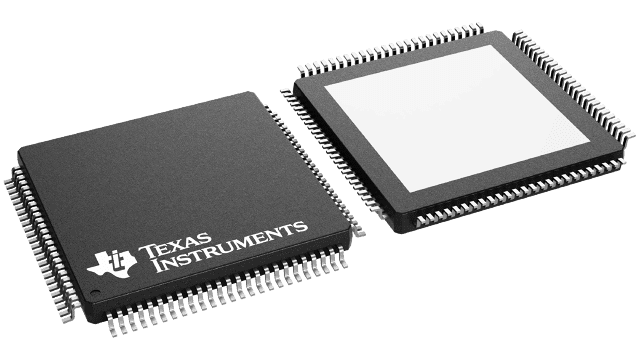

The SN74FB1653 contains an 8-bit and a 9-bit transceiver with a buffered clock. The clock and transceivers are designed to translate signals between LVTTL and BTL environments. The device is designed specifically to be compatible with IEEE Std 1194.1-1991 (BTL).

The A port operates at LVTTL signal levels. The A outputs reflect the inverse of the data at the B port when the A-port output enable (OEA) is high. When OEA is low or when V_CC(5 V) typically is less than 2.5 V, the A outputs are in the high-impedance state.

The B port operates at BTL signal levels. The open-collector B ports are specified to sink 100 mA. Two output enables (OEB and OEB) are provided for the B outputs. When OEB is low, OEB is high, or V_CC(5 V) typically is less than 2.5 V, the B port is turned off.

The clock-select (2SEL1 and 2SEL2) inputs are used to configure the TTL-to-BTL clock paths and delays (refer to the MUX-MODE DELAY table).

BIAS V_CC establishes a voltage between 1.62 V and 2.1 V on the BTL outputs when V_CC(5 V) is not connected.

BG V_CC and BG GND are the supply inputs for the bias generator.

V_REF is an internally generated voltage source. It is recommended that V_REF be decoupled with a 0.1-µF capacitor.

Enhanced heat-dissipation techniques should be used when operating this device from AI to A0 at frequencies greater than 50 MHz, or from AI to B or B to A0 at frequencies greater than 100 MHz.
