TPS7A14C
  • TPS7A14C
  • TPS7A14C
  • TPS7A14C

TPS7A14C

ACTIVE

1A, low input and low output voltage, fast settling ultra-low-dropout (LDO) regulator

Texas Instruments TPS7A14C Product Info

1 April 2026 2

Parameters

Rating

Catalog

Vin (max) (V)

2.2

Vin (min) (V)

0.7

Iout (max) (A)

1

Output options

Fixed Output

Vout (max) (V)

2

Vout (min) (V)

0.5

Fixed output options (V)

0.8

Noise (µVrms)

7.2

PSRR at 100 KHz (dB)

43

Iq (typ) (mA)

0.0056

Features

Enable, Output discharge

Thermal resistance θJA (°C/W)

72.7, 136.7

Load capacitance (min) (µF)

1.5

Regulated outputs (#)

1

Accuracy (%)

1

Dropout voltage (Vdo) (typ) (mV)

70

Operating temperature range (°C)

-40 to 125

Package

DSBGA (YBK)-6-0.8236 mm² 1.16 x 0.71

Features

  • Ultra-low input voltage range: 0.7V to 2.2V
  • High efficiency:
    • Dropout voltage at 1A: 80mV (max)
  • Excellent load transient response
  • Accuracy over load, line, and temperature:
    • +10mV (max) to −23mV (min)
  • High PSRR:
    • 60dB at 1kHz (VOUT = 0.8V, IOUT = 500mA)
  • Available in fixed-output voltages:
    • 0.5V to 2.0V (in 25mV steps)
  • VBIAS range: 2.2V to 5.5V
  • Package:
    • 6-pin WCSP: 1.16mm × 0.71mm
  • Active output discharge
  • Ultra-low input voltage range: 0.7V to 2.2V
  • High efficiency:
    • Dropout voltage at 1A: 80mV (max)
  • Excellent load transient response
  • Accuracy over load, line, and temperature:
    • +10mV (max) to −23mV (min)
  • High PSRR:
    • 60dB at 1kHz (VOUT = 0.8V, IOUT = 500mA)
  • Available in fixed-output voltages:
    • 0.5V to 2.0V (in 25mV steps)
  • VBIAS range: 2.2V to 5.5V
  • Package:
    • 6-pin WCSP: 1.16mm × 0.71mm
  • Active output discharge

Description

The TPS7A14C is a small, ultra low-dropout regulator (LDO) with excellent transient response. This device sources 1A with outstanding ac performance (load and line transient responses). The input voltage range is 0.7V to 2.2V, and the output range is 0.5V to 2.0V with excellent accuracy over load, line, and temperature.

The primary power path is through the IN pin, which is connected to a power supply as low as 50mV above the output voltage. All electrical characteristics are specified for input voltages 100mV greater than the output voltage, thereby yielding high practical efficiency. This regulator supports very low input voltages by using a higher, externally supplied VBIAS rail that powers the internal circuitry of the LDO.

The TPS7A14C is equipped with an active pulldown circuit to quickly discharge the output when disabled, and provides a known start-up state.

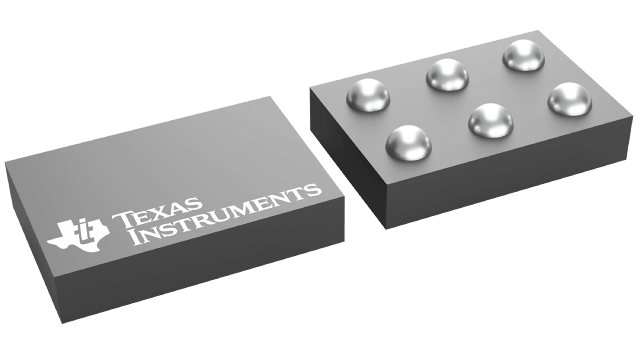

The TPS7A14C is available in an ultra-small 0.71mm × 1.16mm, 6-bump WCSP package.
