ACTIVE
Bits (#) |
8 |
Data rate (max) (Mbps) |
3200 |
Topology |
Push-Pull |
Direction control (typ) |
Direction-controlled |
Vin (min) (V) |
1.4 |
Vin (max) (V) |
3.6 |
Vout (min) (V) |
1.4 |
Vout (max) (V) |
3.6 |
Applications |
RGMII |
Features |
Output enable, Overvoltage tolerant inputs, Partial power down (Ioff) |
Technology family |
AVC |
Supply current (max) (mA) |
0.025 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

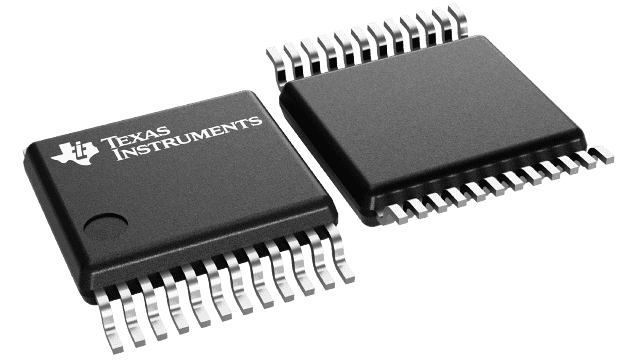

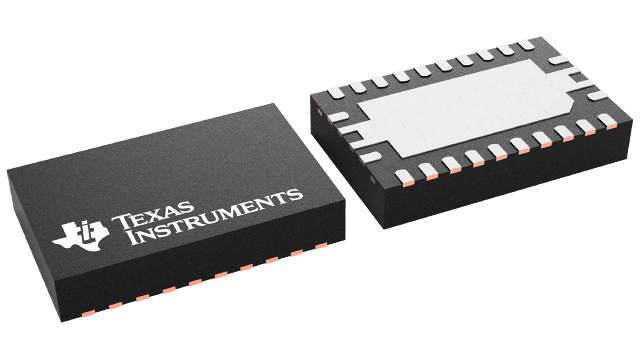

TSSOP (PW)-24-49.92 mm² 7.8 x 6.4
This 8-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC8T245 is optimized to operate with V CCA/V CCB set at 1.4 V to 3.6 V. The device is operational with V CCA and V CCB as low as 1.2 V. The A port is designed to track V CCA. V CCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track V CCB. V CCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.

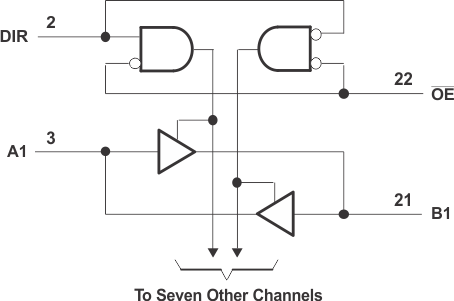

The SN74AVC8T245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable ( OE) input can be used to disable the outputs so the buses are effectively isolated.
The SN74AVC8T245 is designed so that the control pins (DIR and OE) are supplied by V CCA.
The SN74AVC8T245 is compatible with a single-supply system and can be replaced later with a 245 function, with minimal printed circuit board redesign.
This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, thus preventing damaging current backflow through the device when it is powered down.
The V CC isolation feature allows both ports to be in the high-impedance state when either V CC input is at GND.
To put the device into the high-impedance state during power up or power down, tie OE to V CC through a pullup resistor; the current-sinking capability of the driver determines the minimum value of the resistor.
