Wide-VIN 2.2MHz dual-phase boost controller with VOUT tracking

Texas Instruments LM5125A-Q1 Product Info

1 April 2026 0

Parameters

Rating

Automotive

Topology

Boost Controller

Vin (max) (V)

45

Vin (min) (V)

2.5

Vout (max) (V)

60

Vout (min) (V)

6

Control mode

current mode control

Features

Adjustable current limit, Adjustable soft start, Adjustable switching frequency, Analog current monitor, Automatic Light Load Management, Automotive load dump, Bypass Mode, Chip-enable control pin, Cycle-by-cycle overcurrent protection, External Sync, Fixed PWM Mode, Multiphase, Overcurrent protection with adjustable delay, Power good, Programmable dead time, Spread Spectrum, Tracking

EMI features

Frequency Dithering, Spread Spectrum

Duty cycle (max) (%)

99.2

Iq (typ) (A)

0.00025

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 150

Package

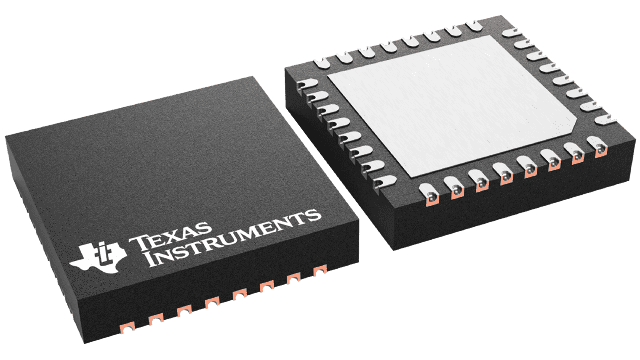

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • AEC-Q100 qualified for automotive applications
    • Temperature grade 1: TA = –40°C to +125°C
  • Functional Safety-Capable
  • Input voltage 4.5V to 42V
    • Minimum 2.5V for V(BIAS) ≥ 4.5V or VOUT ≥ 6V
  • Output Voltage 6V to 60V
    • 2% accuracy, internal feedback resistors
    • Bypass operation for VI > VOUT
    • Dynamic output voltage tracking
      • Digital PWM tracking (DTRK)
      • Analog tracking (ATRK)
    • Overvoltage protection (64V, 50V, 35V, 28.5V)
  • Low shutdown IQ of 2µA
  • Low operating IQ of 1.4mA
  • Stacking with interleaved multiphase operation
    • Up to 4-phases without external clock
  • Switching frequency from 100kHz to 2.2MHz
    • Synchronization to external clock (SYNCIN)
    • Dynamically selectable switching modes (FPWM, diode emulation)
    • Spread spectrum (DRSS)
  • Selectable dead time (14ns to 200ns)
  • Current sense resistor or DCR sensing
  • Average inductor current monitor
  • Average input current limit
    • Programmable current limit
    • Selectable delay time
  • Power-good indicator
  • Programmable VI undervoltage lockout (UVLO)
  • Lead-less VQFN-32 package with wettable flanks
  • AEC-Q100 qualified for automotive applications
    • Temperature grade 1: TA = –40°C to +125°C
  • Functional Safety-Capable
  • Input voltage 4.5V to 42V
    • Minimum 2.5V for V(BIAS) ≥ 4.5V or VOUT ≥ 6V
  • Output Voltage 6V to 60V
    • 2% accuracy, internal feedback resistors
    • Bypass operation for VI > VOUT
    • Dynamic output voltage tracking
      • Digital PWM tracking (DTRK)
      • Analog tracking (ATRK)
    • Overvoltage protection (64V, 50V, 35V, 28.5V)
  • Low shutdown IQ of 2µA
  • Low operating IQ of 1.4mA
  • Stacking with interleaved multiphase operation
    • Up to 4-phases without external clock
  • Switching frequency from 100kHz to 2.2MHz
    • Synchronization to external clock (SYNCIN)
    • Dynamically selectable switching modes (FPWM, diode emulation)
    • Spread spectrum (DRSS)
  • Selectable dead time (14ns to 200ns)
  • Current sense resistor or DCR sensing
  • Average inductor current monitor
  • Average input current limit
    • Programmable current limit
    • Selectable delay time
  • Power-good indicator
  • Programmable VI undervoltage lockout (UVLO)
  • Lead-less VQFN-32 package with wettable flanks

Description

The LM5125A-Q1 is a stackable, dual-phase, synchronous boost controller. The device provides a regulated output voltage for lower or equal input voltage also supporting VI to VOUT bypass mode to save power. Stack two devices with or without external clock.

Dynamically program VOUT using the analog or digital ATRK/DTRK function. VI is supported down to 2.5V after start-up as the internal VCC supply is automatically switched from VBIAS to VOUT for VBIAS < 4.5V. The fixed switching frequency is set between 100kHz and 2.2MHz through a resistor on the RT pin or the SYNCIN clock. The switching modes FPWM or diode emulation can be changed during operation.

The implemented protections peak current limit, average input current limit, average inductor current monitor, over and undervoltage protection, and the thermal shutdown protect the device and the application.

The LM5125A-Q1 is a stackable, dual-phase, synchronous boost controller. The device provides a regulated output voltage for lower or equal input voltage also supporting VI to VOUT bypass mode to save power. Stack two devices with or without external clock.

Dynamically program VOUT using the analog or digital ATRK/DTRK function. VI is supported down to 2.5V after start-up as the internal VCC supply is automatically switched from VBIAS to VOUT for VBIAS < 4.5V. The fixed switching frequency is set between 100kHz and 2.2MHz through a resistor on the RT pin or the SYNCIN clock. The switching modes FPWM or diode emulation can be changed during operation.

The implemented protections peak current limit, average input current limit, average inductor current monitor, over and undervoltage protection, and the thermal shutdown protect the device and the application.
