Texas Instruments SN74AUC1G14 Product Info

Parameters

Technology family	AUC
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Number of channels	1
IOL (max) (mA)	9
IOH (max) (mA)	-9
Supply current (max) (µA)	10
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 2.5 ns at 1.8 V
Low Power Consumption, 10-µA Max I_CC
±8-mA Output Drive at 1.8 V

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 2.5 ns at 1.8 V
Low Power Consumption, 10-µA Max I_CC
±8-mA Output Drive at 1.8 V

Description

This single Schmitt-trigger inverter is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G14 contains one inverter and performs the Boolean function Y = A. The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going (V_T+) and negative-going (V_T–) signals.

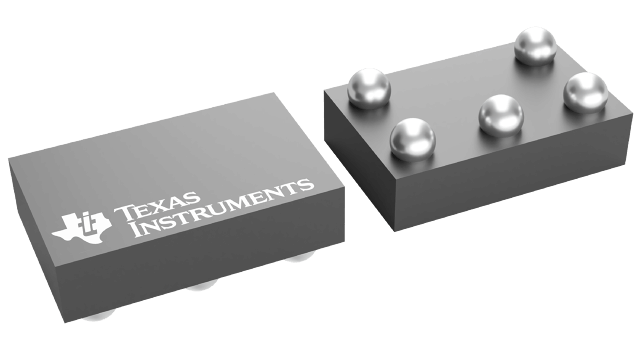

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, see Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, SCEA027.

This single Schmitt-trigger inverter is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G14 contains one inverter and performs the Boolean function Y = A. The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going (V_T+) and negative-going (V_T–) signals.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, see Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, SCEA027.
