ACTIVE
Technology family |
ALVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
8 |
IOL (max) (mA) |
24 |
Supply current (max) (µA) |
10 |
IOH (max) (mA) |
-24 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Bus-hold, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

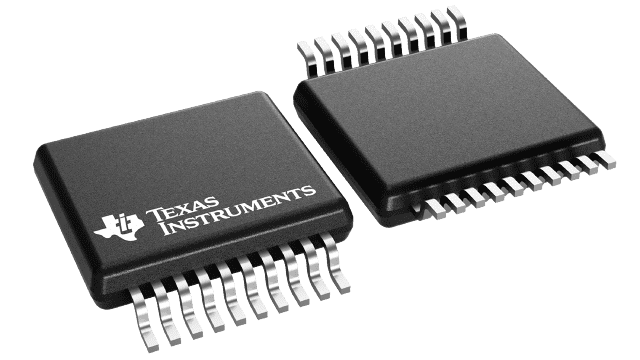

SOIC (DW)-20-131.84 mm² 12.8 x 10.3
This octal buffer/line driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH244 is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
