TMP139

ACTIVE

JEDEC DDR5 temperature sensor with 0.5 °C accuracy

Texas Instruments TMP139 Product Info

1 April 2026 4

Parameters

Local sensor accuracy (max)	0.5
Type	Local
Operating temperature range (°C)	-40 to 125
Supply voltage (min) (V)	1.7
Interface type	I2C, I3C
Supply voltage (max) (V)	1.98
Features	Error Check, JEDEC JESD30201
Supply current (max) (µA)	9.1
Temp resolution (max) (bps)	11
Remote channels (#)	0
Addresses	2
Rating	Catalog

Package

DSBGA (YAH)-6-1.099584 mm² 1.328 x 0.828

Features

Supports JEDEC JESD302-1 DDR5 Grade B temperature sensor
Exceeds JEDEC temperature accuracy specification:
- ±0.25°C typical
- ±0.5°C maximum (+75°C to +95°C)
- ±0.75°C maximum (–40°C to +125°C)
Operating temperature range: –40°C to +125°C
Low power consumption:
- 8.3-µA typical average quiescent current
- 4.0-µA typical standby current
I/O power supply of 1 V
Core power supply of 1.8 V
Two wire serial bus interface (I 2C and I3C basic operation modes)
Up to 12.5-MHz data transfer rate in I3C basic mode
In Band Interrupt (IBI) for alerting host
Parity error check function for host writes
Packet error check function for host read and writes
11-bit resolution: 0.25°C (1 LSB)

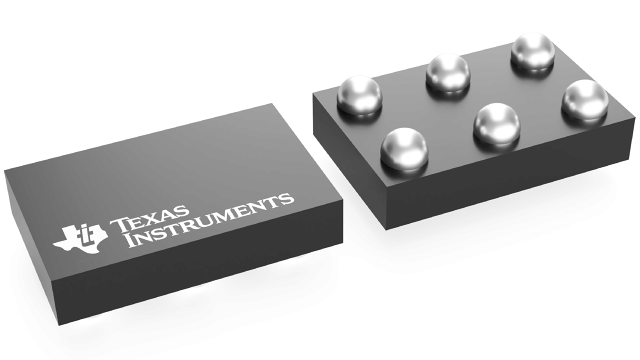

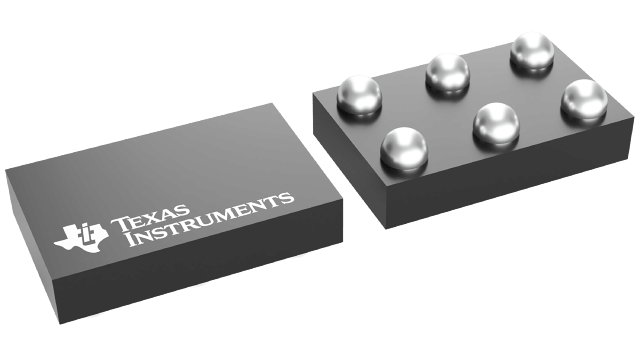

Standard 6-ball DSBGA (WCSP) package with 0.5-mm pitch

Supports JEDEC JESD302-1 DDR5 Grade B temperature sensor
Exceeds JEDEC temperature accuracy specification:
- ±0.25°C typical
- ±0.5°C maximum (+75°C to +95°C)
- ±0.75°C maximum (–40°C to +125°C)
Operating temperature range: –40°C to +125°C
Low power consumption:
- 8.3-µA typical average quiescent current
- 4.0-µA typical standby current
I/O power supply of 1 V
Core power supply of 1.8 V
Two wire serial bus interface (I 2C and I3C basic operation modes)
Up to 12.5-MHz data transfer rate in I3C basic mode
In Band Interrupt (IBI) for alerting host
Parity error check function for host writes
Packet error check function for host read and writes
11-bit resolution: 0.25°C (1 LSB)
Standard 6-ball DSBGA (WCSP) package with 0.5-mm pitch

Description

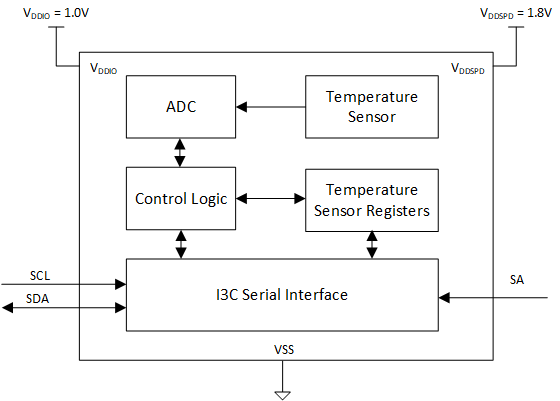

The TMP139 is a high-accuracy temperature sensor with an I 2C / I3C compliant digital interface supporting In Band Interrupts (IBI). Supporting the interface requirements of JEDEC JESD302-1 for Grade-B devices, the TMP139 exceeds the temperature accuracy requirements of the specification, enabling higher performance DDR5 memory modules. Available in a compact 6-ball DSBGA package, TMP139 is designed for high-speed, high-accuracy and low-power thermal monitoring applications.

The TMP139 has a typical accuracy of ±0.25°C over the entire temperature range from –40°C to +125 °C and offers an on-chip 11-bit analog-to-digital converter (ADC) providing a temperature resolution of 0.25°C.

The TMP139 is designed to operate from a core power supply of 1.8 V and I/O power supply of 1 V, with a low typical average quiescent current of 8.3 µA when performing conversions every 125 ms.
