ACTIVE
Technology family |
ALVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
8 |
IOL (max) (mA) |
12 |
Supply current (max) (µA) |
40 |
IOH (max) (mA) |
-12 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Bus-hold, Damping resistors, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

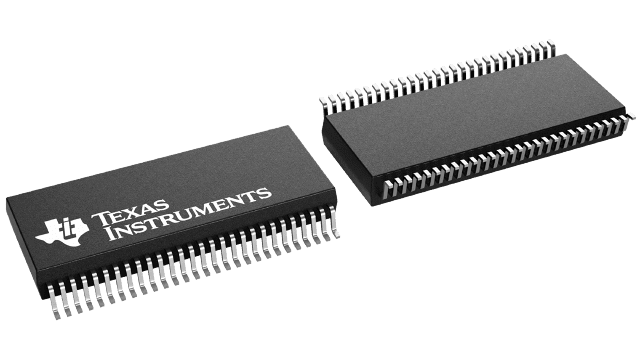

SSOP (DL)-56-190.647 mm² 18.42 x 10.35
Resistors, So No External Resistors Are RequiredWidebus is a trademark of Texas Instruments.
This 1-bit to 4-bit address driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH162344 is used in applications in which four separate memory locations must be addressed by a single address.
The outputs, which are designed to sink up to 12 mA, include equivalent 26- resistors to reduce overshoot and undershoot.
To ensure the high-impedance state during power up or power down, the output-enable (OE) inputs should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
