ACTIVE
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
Inputs per channel |
2 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
70 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
PDIP (N)-14-181.42 mm² 19.3 x 9.4

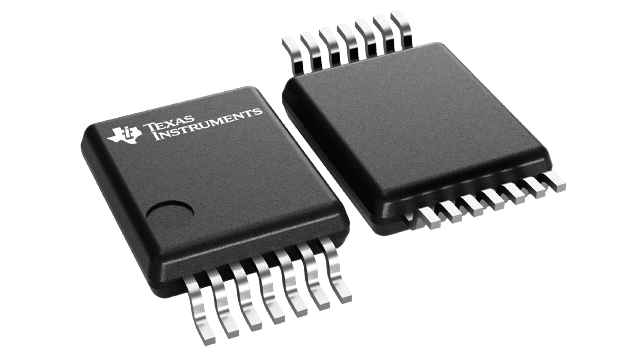

SN74AHCT08
SN74AHCT08:4-ch, 2-input 4.5-V to 5.5-V high-speed (7.1 ns) AND gate with TTL-compatible inputs.Package:PDIP (N)-14-181.42 mm² 19.3 x 9.4
