ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
6.5 |
Vos (offset voltage at 25°C) (max) (mV) |
1.8 |
Iq per channel (typ) (mA) |
0.538 |
Vn at 1 kHz (typ) (nV√Hz) |
16 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TI functional safety category |
Functional Safety-Capable |
Offset drift (typ) (µV/°C) |
0.53 |
Features |
Cost Optimized, EMI Hardened |
CMRR (typ) (dB) |
103 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.02 |
Output swing headroom (to positive supply) (typ) (V) |
-0.02 |
SOIC (D)-14-51.9 mm² 8.65 x 6

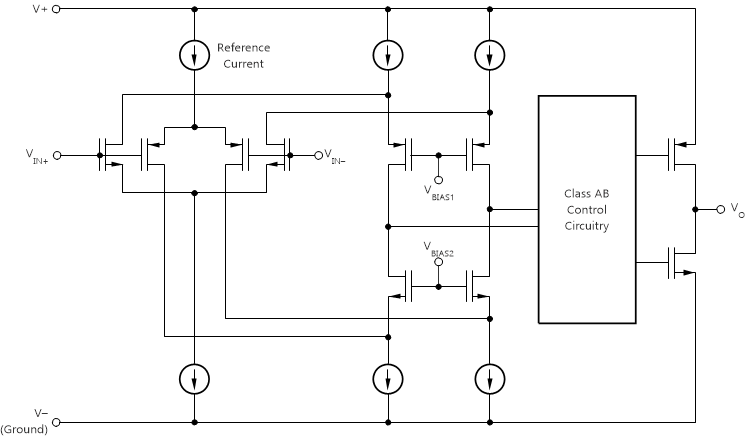

The TLV9061-Q1 (single), TLV9062-Q1 (dual) and TLV9064-Q1 (quad) are single-, dual- and quad-low-voltage (1.8 V to 5.5 V) operational amplifiers (op amps) with rail-to-rail input- and output-swing capabilities. These devices are cost-effective methods for automotive applications where low-voltage operation, a small footprint, and high capacitive load drive are required. Although the capacitive load drive of the TLV906x-Q1 is 100 pF, the resistive open-loop output impedance makes stabilizing with higher capacitive loads simpler. These op amps are designed specifically for low-voltage operation (1.8 V to 5.5 V) with performance specifications similar to the OPAx316 and TLVx316 devices, and identical to their non-automotive qualified TLV906x counterparts.
