SN74AHC1G08
  • SN74AHC1G08
  • SN74AHC1G08
  • SN74AHC1G08
  • SN74AHC1G08
  • SN74AHC1G08

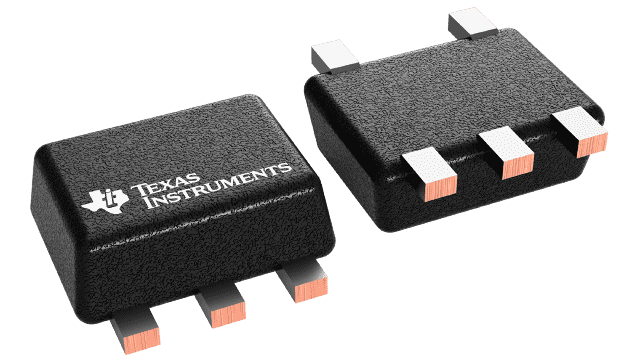

SN74AHC1G08

ACTIVE

1-ch, 2-input 2-V to 5.5-V high-speed (9 ns) AND gate

Texas Instruments SN74AHC1G08 Product Info

1 April 2026 0

Parameters

Technology family

AHC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

1

Inputs per channel

2

IOL (max) (mA)

8

IOH (max) (mA)

-8

Input type

Standard CMOS

Output type

Push-Pull

Features

Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

110

Rating

Catalog

Operating temperature range (°C)

-55 to 125

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Operating Range 2 V to 5.5 V
  • Maximum tpd of 7 ns at 5 V
  • Low Power Consumption, 10-µA Maximum ICC
  • ±8-mA Output Drive at 5 V
  • Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
  • Latch-Up Performance Exceeds 250 mA Per JESD 17
  • Operating Range 2 V to 5.5 V
  • Maximum tpd of 7 ns at 5 V
  • Low Power Consumption, 10-µA Maximum ICC
  • ±8-mA Output Drive at 5 V
  • Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
  • Latch-Up Performance Exceeds 250 mA Per JESD 17

Description

The SN74AHC1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A ● B or Y = A + B in positive logic.

The SN74AHC1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A ● B or Y = A + B in positive logic.
