SN74AHC1G02
  • SN74AHC1G02
  • SN74AHC1G02
  • SN74AHC1G02
  • SN74AHC1G02

SN74AHC1G02

ACTIVE

Single 2-input, 2-V to 5.5-V NOR gate

Texas Instruments SN74AHC1G02 Product Info

1 April 2026 0

Parameters

Technology family

AHC

Number of channels

1

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Inputs per channel

2

IOL (max) (mA)

8

IOH (max) (mA)

-8

Output type

Push-Pull

Input type

Standard CMOS

Features

Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

110

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

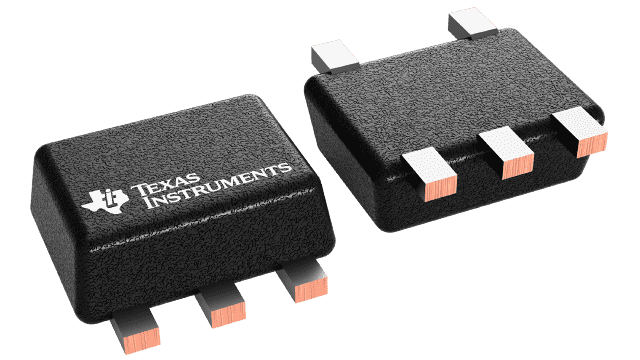

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Operating Range of 2 V to 5.5 V
  • Max tpd of 6.5 ns at 5 V
  • Low Power Consumption, 10-µA Max ICC
  • ±8-mA Output Drive at 5 V
  • Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
  • Operating Range of 2 V to 5.5 V
  • Max tpd of 6.5 ns at 5 V
  • Low Power Consumption, 10-µA Max ICC
  • ±8-mA Output Drive at 5 V
  • Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time

Description

This device contains a single 2-input NOR gate that performs the Boolean function Y = A × B or Y = A + B in positive logic.

This device contains a single 2-input NOR gate that performs the Boolean function Y = A × B or Y = A + B in positive logic.
