0
ACTIVE
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
CMOS |
Output type |
CMOS |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Technology family |
AC |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

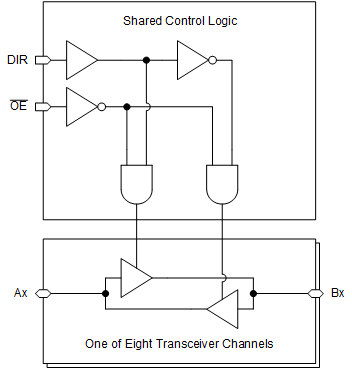

The SN74AC245-Q1 is an octal bus transceiver with 3-state outputs. All eight channels are controlled by the direction (DIR) pin and output enable (OE) pin.
