0
ACTIVE
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
24 |
Supply current (max) (µA) |
40 |
IOH (max) (mA) |
-24 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

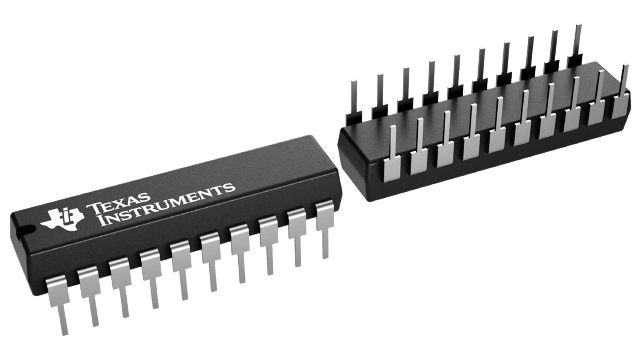

PDIP (N)-20-228.702 mm² 24.33 x 9.4
These octal buffers and line drivers are designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
