PGA849
  • PGA849
  • PGA849
  • PGA849
  • PGA849

PGA849

ACTIVE

Low-noise wide-bandwidth precision programmable-gain amplifier

Texas Instruments PGA849 Product Info

1 April 2026 1

Parameters

PGA/VGA

PGA

Number of channels

1

Vs (min) (V)

8

Vs (max) (V)

36

Input type

Differential

Output type

Single-ended

Input offset drift (±) (typ) (µV/°C)

0.2

Interface type

GPIO

Noise at 0.1 Hz to 10 Hz (typ) (VPP)

0.00000026

BW at Acl (MHz)

10

Acl, min spec gain (V/V)

0.125

Gain (max) (dB)

24

Architecture

Bipolar

Features

Overvoltage protection, Super-beta

Vos (offset voltage at 25°C) (typ) (mV)

0.05

Input voltage noise (typ) (µV√Hz)

0.0078

Slew rate (typ) (V/µs)

35

Iq per channel (typ) (mA)

4.3

Gain error (typ) (%)

0.02

Gain drift (max) (ppm/°C)

2

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

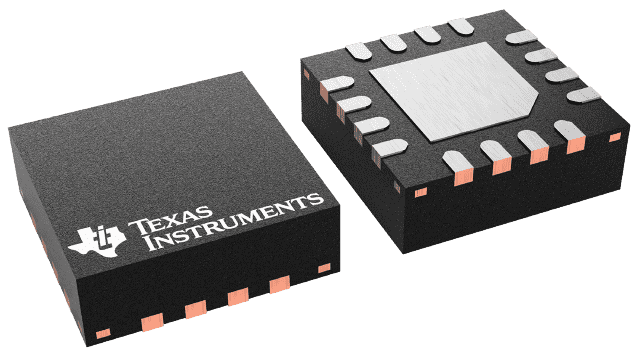

VQFN (RGT)-16-9 mm² 3 x 3

Features

  • Differential to single-ended conversion
  • Eight pin-programmable binary gains
    • G (V/V) = ⅛, ¼, ½, 1, 2, 4, 8, and 16
  • Low gain error drift: ±2ppm/°C (maximum)
  • Faster signal processing:
    • Wide bandwidth: 10MHz at all gains
    • High slew rate: 35V/µs at G ≥ ½ V/V
    • Settling time: 700ns to 0.01%, 950ns to 0.0015%
    • Input stage noise: 8.6nV/√Hz at G = 16V/V
    • Filter option to achieve better SNR
  • Input overvoltage protection to ±40V beyond supplies
  • Input-stage supply range:
    • Single supply: 8V to 36V
    • Dual supply: ±4V to ±18V
  • Independent output power-supply pins
  • Output-stage supply range:
    • Single supply: 4.5V to 36V
    • Dual supply: ±2.25V to ±18V
  • Specified temperature range: ­–40°C to +125°C
  • Small package: 3mm × 3mm QFN
  • Differential to single-ended conversion
  • Eight pin-programmable binary gains
    • G (V/V) = ⅛, ¼, ½, 1, 2, 4, 8, and 16
  • Low gain error drift: ±2ppm/°C (maximum)
  • Faster signal processing:
    • Wide bandwidth: 10MHz at all gains
    • High slew rate: 35V/µs at G ≥ ½ V/V
    • Settling time: 700ns to 0.01%, 950ns to 0.0015%
    • Input stage noise: 8.6nV/√Hz at G = 16V/V
    • Filter option to achieve better SNR
  • Input overvoltage protection to ±40V beyond supplies
  • Input-stage supply range:
    • Single supply: 8V to 36V
    • Dual supply: ±4V to ±18V
  • Independent output power-supply pins
  • Output-stage supply range:
    • Single supply: 4.5V to 36V
    • Dual supply: ±2.25V to ±18V
  • Specified temperature range: ­–40°C to +125°C
  • Small package: 3mm × 3mm QFN

Description

The PGA849 is a wide-bandwidth, low-noise programmable gain instrumentation amplifier for differential-to-single-ended conversion. The PGA849 is equipped with eight binary gain settings, from an attenuating gain of 0.125V/V to a maximum of 16V/V, using three digital gain selection pins.

The PGA849 architecture is optimized to drive inputs of high-resolution, precision analog-to-digital converters (ADCs) with sampling rates up to 1MSPS without the need for an additional ADC driver. The output-stage power supplies are decoupled from the input stage to protect the ADC or downstream devices against overdrive damage.

The super-beta input transistors offer an impressively low input bias current, which in turn provides a very low input current noise density of 0.3pA/√Hz, making the PGA849 a versatile choice for virtually any sensor type. The low-noise current-feedback front-end architecture offers exceptional gain flatness even at high frequencies, making the PGA849 an excellent high-impedance sensor readout device. Integrated protection circuitry on the input pins handles overvoltages of up to ±40V beyond the power-supply voltages.

The PGA849 is a wide-bandwidth, low-noise programmable gain instrumentation amplifier for differential-to-single-ended conversion. The PGA849 is equipped with eight binary gain settings, from an attenuating gain of 0.125V/V to a maximum of 16V/V, using three digital gain selection pins.

The PGA849 architecture is optimized to drive inputs of high-resolution, precision analog-to-digital converters (ADCs) with sampling rates up to 1MSPS without the need for an additional ADC driver. The output-stage power supplies are decoupled from the input stage to protect the ADC or downstream devices against overdrive damage.

The super-beta input transistors offer an impressively low input bias current, which in turn provides a very low input current noise density of 0.3pA/√Hz, making the PGA849 a versatile choice for virtually any sensor type. The low-noise current-feedback front-end architecture offers exceptional gain flatness even at high frequencies, making the PGA849 an excellent high-impedance sensor readout device. Integrated protection circuitry on the input pins handles overvoltages of up to ±40V beyond the power-supply voltages.
