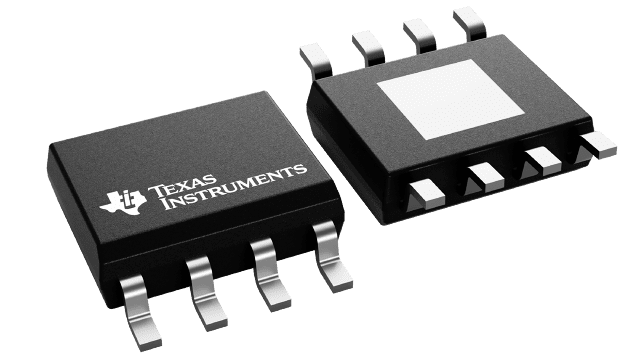

OPA357
  • OPA357
  • OPA357
  • OPA357

OPA357

ACTIVE

250MHz, Rail-to-Rail I/O, Single CMOS Operational Amplifier w/Shutdown

Texas Instruments OPA357 Product Info

1 April 2026 2

Parameters

Architecture

FET / CMOS Input, Voltage FB

Number of channels

1

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

2.5

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

5.5

GBW (typ) (MHz)

100

BW at Acl (MHz)

250

Acl, min spec gain (V/V)

1

Slew rate (typ) (V/µs)

150

Vn at flatband (typ) (nV√Hz)

6.5

Vn at 1 kHz (typ) (nV√Hz)

6.5

Iq per channel (typ) (mA)

4.9

Vos (offset voltage at 25°C) (max) (mV)

8

Rail-to-rail

In, Out

Features

Shutdown

Rating

Catalog

Operating temperature range (°C)

-40 to 125

CMRR (typ) (dB)

68

Input bias current (max) (pA)

50

Offset drift (typ) (µV/°C)

4

Iout (typ) (mA)

100

2nd harmonic (dBc)

75

3rd harmonic (dBc)

83

Frequency of harmonic distortion measurement (MHz)

1

Package

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

Features

  • Unity-Gain Bandwidth: 250 MHz
  • Wide Bandwidth: 100-MHz GBW
  • High Slew Rate: 150 V/µs
  • Low Noise: 6.5 nV/√Hz
  • Rail-to-Rail I/O
  • High Output Current: > 100 mA
  • Excellent Video Performance:
    • Differential Gain: 0.02%, Differential Phase: 0.09°
    • 0.1-dB Gain Flatness: 40 MHz
  • Low Input Bias Current: 3 pA
  • Quiescent Current: 4.9 mA
  • Thermal Shutdown
  • Supply Range: 2.5 V to 5.5 V
  • Shutdown IQ < 6 µA
  • MicroSIZE Package
  • Create a Custom Design Using the OPA357 With the WEBENCH® Power Designer
  • Unity-Gain Bandwidth: 250 MHz
  • Wide Bandwidth: 100-MHz GBW
  • High Slew Rate: 150 V/µs
  • Low Noise: 6.5 nV/√Hz
  • Rail-to-Rail I/O
  • High Output Current: > 100 mA
  • Excellent Video Performance:
    • Differential Gain: 0.02%, Differential Phase: 0.09°
    • 0.1-dB Gain Flatness: 40 MHz
  • Low Input Bias Current: 3 pA
  • Quiescent Current: 4.9 mA
  • Thermal Shutdown
  • Supply Range: 2.5 V to 5.5 V
  • Shutdown IQ < 6 µA
  • MicroSIZE Package
  • Create a Custom Design Using the OPA357 With the WEBENCH® Power Designer

Description

The OPA357 series of high-speed, voltage-feedback CMOS operational amplifiers is designed for video and other applications requiring wide bandwidth. These devices are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9 mA per channel.

The OPA357 series of op amps is optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, supporting wide dynamic range.

The single version (OPA357) comes in the miniature SOT23-6 package. The dual version (OPA2357) is offered in the VSSOP-10 package.

The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction. Both versions are specified over the extended –40°C to +125°C temperature range.
