ACTIVE
Architecture |
FET / CMOS Input, Voltage FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
GBW (typ) (MHz) |
100 |
BW at Acl (MHz) |
250 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
150 |
Vn at flatband (typ) (nV√Hz) |
6.5 |
Vn at 1 kHz (typ) (nV√Hz) |
70 |
Iq per channel (typ) (mA) |
4.9 |
Vos (offset voltage at 25°C) (max) (mV) |
8 |
Rail-to-rail |
In, Out |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
CMRR (typ) (dB) |
80 |
Input bias current (max) (pA) |
50 |
Offset drift (typ) (µV/°C) |
4 |
Iout (typ) (mA) |
100 |
2nd harmonic (dBc) |
75 |
3rd harmonic (dBc) |
83 |
Frequency of harmonic distortion measurement (MHz) |
1 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

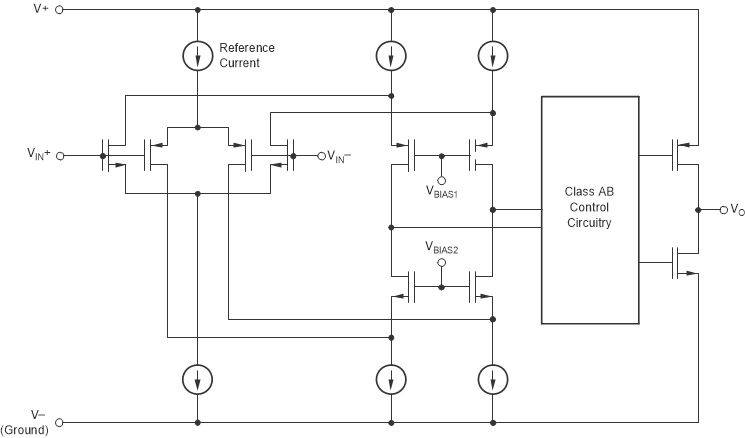

The design of the OPAx354-Q1 family of high-speed, voltage-feedback CMOS operational amplifiers is for video and other applications requiring wide bandwidth. These devices are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9 mA per channel.
The OPAx354-Q1 family of operational amplifiers (op-amps) are optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, supporting wide dynamic range.
The single-supply version (OPA354A-Q1) is available in the tiny SOT–23-5 (DBV) package. The dual-supply version (OPA2354A-Q1) is available in the miniature VSSOP-8 (DGK) package and features completely independent circuitry for lowest crosstalk and freedom from interaction. The quad-supply version (OPA4354-Q1) is available in the TSSOP-14 (PW) package. The device specifications are for operation over the automotive temperature range of –40°C to +125°C.
