Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.8 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
11 |
GBW (typ) (MHz) |
110 |
BW at Acl (MHz) |
250 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
550 |
Vn at flatband (typ) (nV√Hz) |
9.2 |
Vn at 1 kHz (typ) (nV√Hz) |
9.5 |
Iq per channel (typ) (mA) |
4.25 |
Vos (offset voltage at 25°C) (max) (mV) |
7.5 |
Rail-to-rail |
In to V-, Out |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
80 |
Input bias current (max) (pA) |
10000000 |
Offset drift (typ) (µV/°C) |
27 |
Iout (typ) (mA) |
75 |
2nd harmonic (dBc) |
66 |
3rd harmonic (dBc) |
77 |
Frequency of harmonic distortion measurement (MHz) |
5 |
SOIC (D)-8-29.4 mm² 4.9 x 6

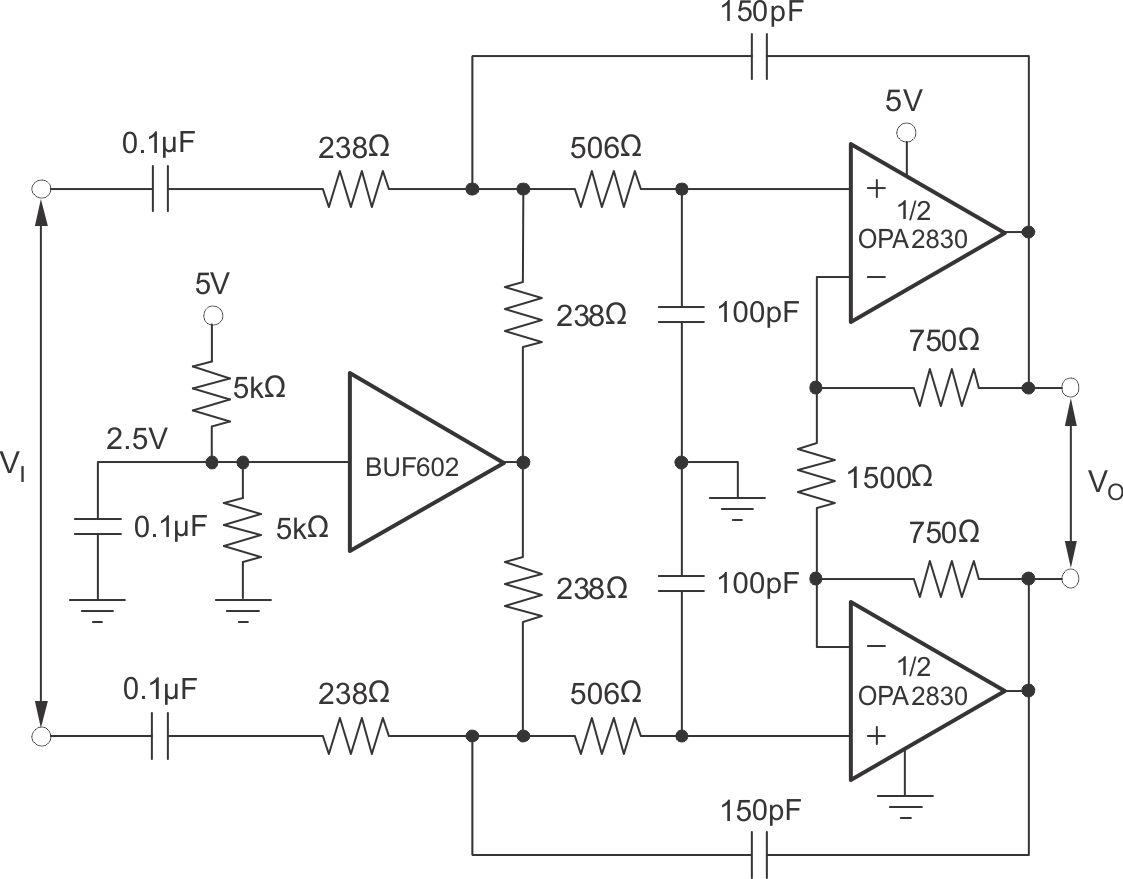

The OPA2830 is a dual, low-power, single-supply, wide-band, voltage-feedback amplifier designed to operate on a single 3V or 5V supply. The device also supports operation on ±5V or +10V supplies. The input range extends below the negative supply and to within 1.8V of the positive supply. Using complementary common-emitter outputs provides an output swing to within 25mV of either supply while driving 150Ω. High output drive current (±75mA) and low differential gain and phase errors also make this device an excellent choice for single-supply consumer video products.
Low distortion operation is provided by the high gain bandwidth product (100MHz) and slew rate (500V/µs), making the OPA2830 an excellent input buffer stage to 3V and 5V CMOS ADCs. Unlike other low-power, single-supply amplifiers, distortion performance improves as the signal swing decreases. A low 9.2nV/√Hz input voltage noise supports wide dynamic range operation.
The OPA2830 is available in an industry-standard SO-8 package. The OPA2830 is also available in a small VSSOP-8 package. For fixed-gain and line driver applications, consider the OPA2832.
