ACTIVE
Type |
Transimpedance and limiting amplifier |
Data rate (max) (Mbps) |
11300 |
Supply current (typ) (µA) |
28000 |
Supply current (max) (µA) |
44000 |
Deterministic jitter (typ) (ps) |
6 |
Operating temperature range (°C) |
-40 to 100 |
DIESALE (Y)-—-See data sheet

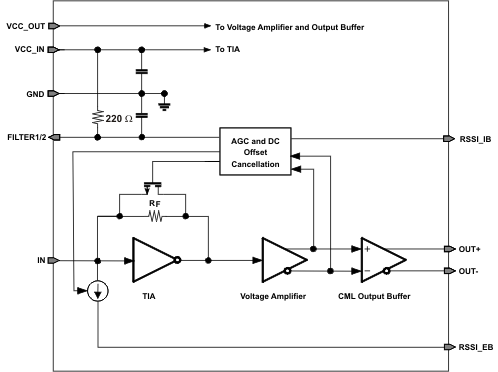

The ONET8501T is a high-speed, high gain, limiting transimpedance amplifier used in optical receivers with data rates up to 12.5Gbps. It features low input referred noise, 10GHz bandwidth, 7kΩ small signal transimpedance, and a received signal strength indicator (RSSI).
The ONET8501T is available in die form, includes an on-chip VCC bypass capacitor and is optimized for packaging in a TO can.
The ONET8501T requires a single 3.3V ±10% supply and its power efficient design typically dissipates less than 105mW. The device is characterized for operation from –40°C to 100°C case (IC back side) temperature.
