ACTIVE
Number of receivers |
4 |
Number of transmitters |
0 |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-15 to 15 |
Common-mode range (V) |
-7 to 7 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
85000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
PDIP (N)-16-181.42 mm² 19.3 x 9.4

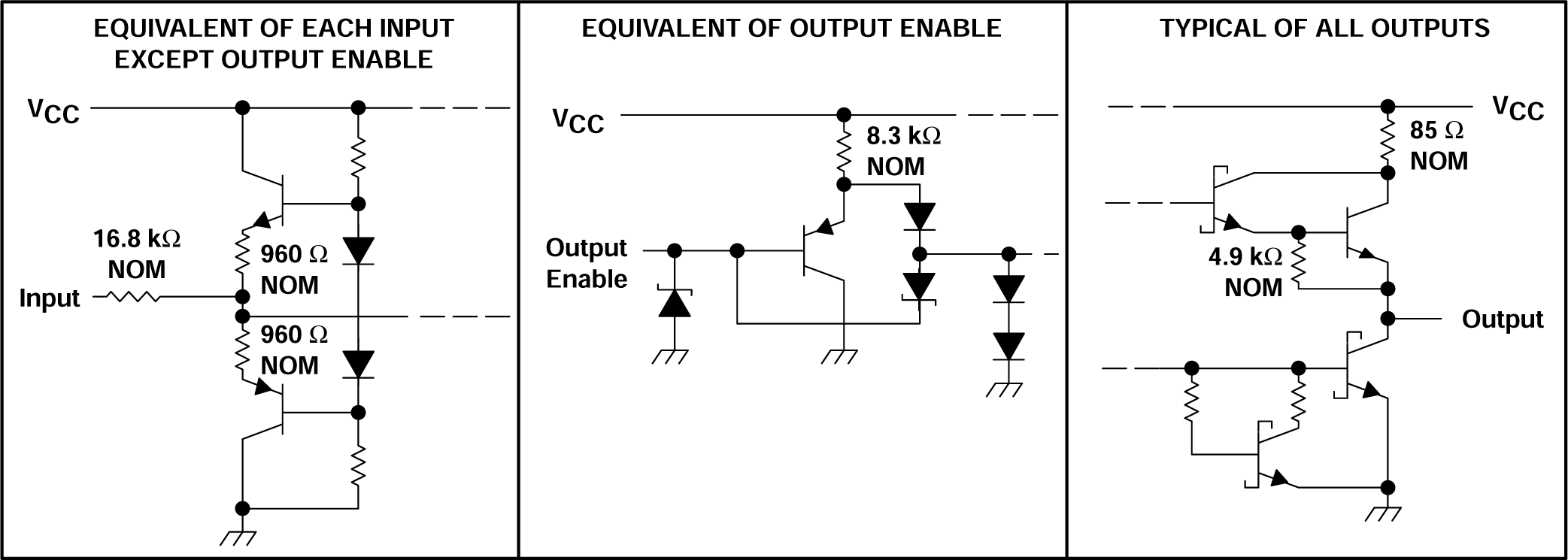

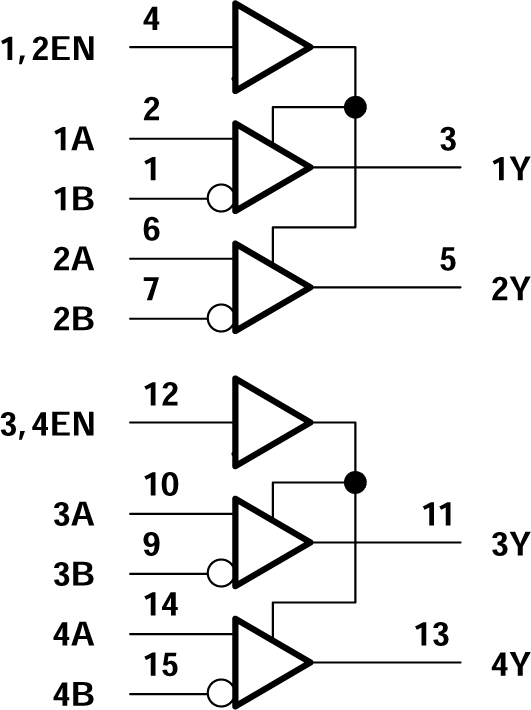

The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU Recommendations V.10 and V.11. The MC3486 offers four independent differential-input line receivers that have TTL-compatible outputs. The outputs utilize 3-state circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic level.
The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line driver. It is supplied in a 16-pin package and operates from a single 5-V supply.
The MC3486 is characterized for operation from 0°C to 70°C.
