Texas Instruments MAX3232 Product Info

Parameters

Drivers per package	2
Receivers per package	2
Logic voltage (min) (V)	3.3
Data rate (max) (Mbps)	0.25
Main supply voltage (nom) (V)	3.3, 5
ESD HBM (kV)	15
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Vout (typ) (V)	5.4

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

RS-232 Bus-terminal esd protection exceeds ±15 kV using human-body model (HBM)
Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
Operates with 3-V to 5.5-V V_CC supply
Operates up to 250 kbit/s
Two drivers and two receivers
Low supply current: 300 µA Typical
External capacitors: 4 × 0.1 µF
Accepts 5-V logic input with 3.3-V supply
Alternative high-speed terminal-compatible devices (1 Mbit/s)
- SN65C3232 (–40°C to 85°C)
- SN75C3232 (0°C to 70°C)

RS-232 Bus-terminal esd protection exceeds ±15 kV using human-body model (HBM)
Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
Operates with 3-V to 5.5-V V_CC supply
Operates up to 250 kbit/s
Two drivers and two receivers
Low supply current: 300 µA Typical
External capacitors: 4 × 0.1 µF
Accepts 5-V logic input with 3.3-V supply
Alternative high-speed terminal-compatible devices (1 Mbit/s)
- SN65C3232 (–40°C to 85°C)
- SN75C3232 (0°C to 70°C)

Description

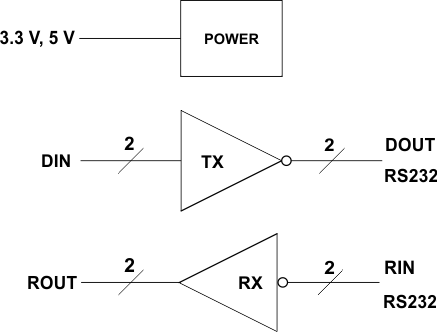

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

spacer

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.
