LP2951JAN

ACTIVE

Series of Adjustable Micropower Voltage Regulators

Texas Instruments LP2951JAN Product Info

1 April 2026 4

Parameters

Rating

Military

Vin (max) (V)

30

Vin (min) (V)

2

Iout (max) (A)

0.1

Output options

Adjustable Output, Fixed Output

Vout (max) (V)

29

Vout (min) (V)

1.2

Fixed output options (V)

5

Noise (µVrms)

160

PSRR at 100 KHz (dB)

57

Iq (typ) (mA)

0.075

Features

Enable, Power good

Thermal resistance θJA (°C/W)

75

Load capacitance (min) (µF)

1

Regulated outputs (#)

1

Accuracy (%)

3

Dropout voltage (Vdo) (typ) (mV)

380

Operating temperature range (°C)

-55 to 125

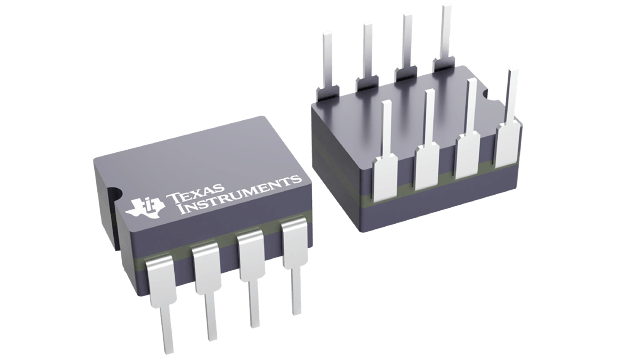

Package

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87

Features

  • High Accuracy Output Voltage
  • Ensured 100mA Output Current
  • Extremely Low Quiescent Current
  • Low Dropout Voltage
  • Extremely Tight Load and Line Regulation
  • Very Low Temperature Coefficient
  • Use as Regulator or Reference
  • Needs Minimum Capacitance for Stability
  • Current and Thermal Limiting
  • Stable with Low-ESR Output Capacitors (10mΩ to 6Ω)
  • Error Flag Warns of Output Dropout
  • Logic-Controlled Electronic Shutdown
  • Output Programmable from 1.24 to 29V

All trademarks are the property of their respective owners.

  • High Accuracy Output Voltage
  • Ensured 100mA Output Current
  • Extremely Low Quiescent Current
  • Low Dropout Voltage
  • Extremely Tight Load and Line Regulation
  • Very Low Temperature Coefficient
  • Use as Regulator or Reference
  • Needs Minimum Capacitance for Stability
  • Current and Thermal Limiting
  • Stable with Low-ESR Output Capacitors (10mΩ to 6Ω)
  • Error Flag Warns of Output Dropout
  • Logic-Controlled Electronic Shutdown
  • Output Programmable from 1.24 to 29V

All trademarks are the property of their respective owners.

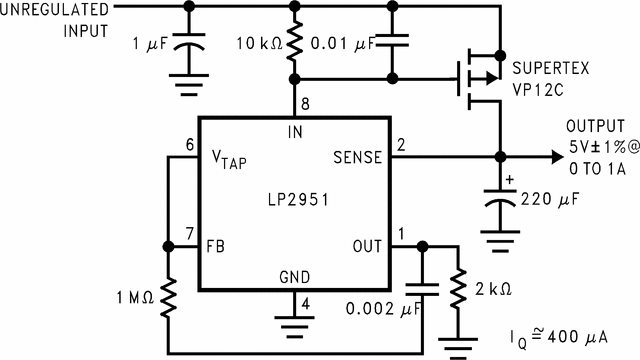

Description

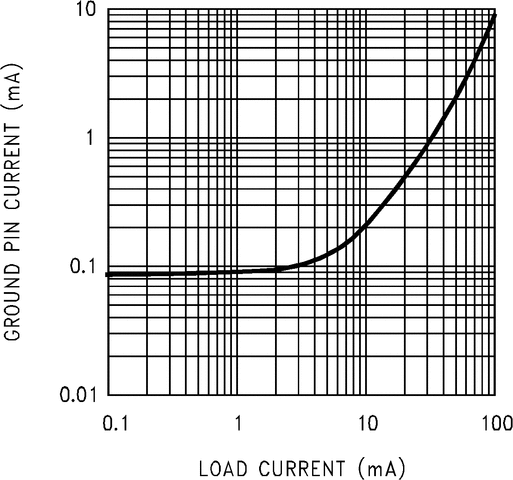

The LP2951 is a micropower voltage regulator with very low quiescent current (75μA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at 100mA). It is ideally suited for use in battery-powered systems. Furthermore, the quiescent current increases only slightly in dropout, prolonging battery life.

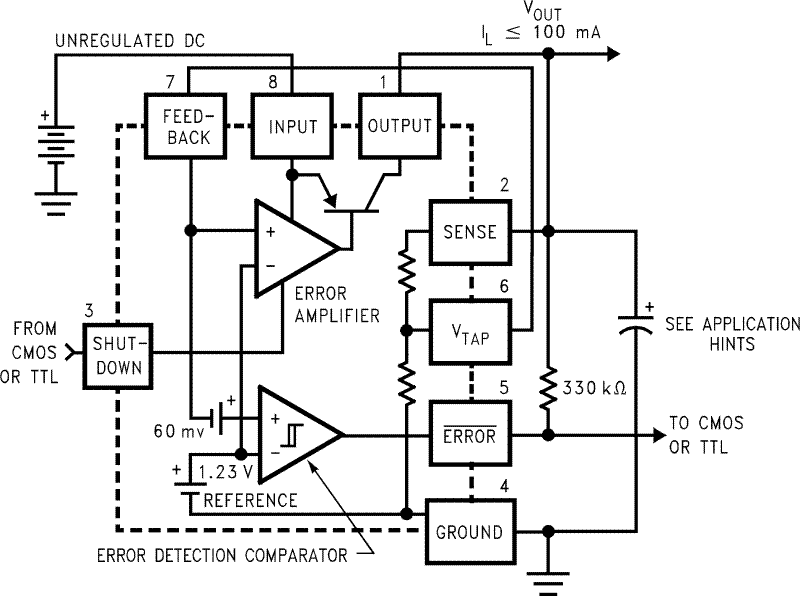

An additional feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 5V, 3V, or 3.3V output (depending on the version), or programmed from 1.24V to 29V with an external pair of resistors.

Careful design of the LP2951 has minimized all contributions to the error budget. This includes a tight initial tolerance (0.5% typ.), extremely good load and line regulation (0.05% typ.) and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference.
