0
ACTIVE
Offset voltage (input amplifiers) (max) (mV) |
150 |
Vs (±) (min) (V) |
2.7 |
Vs (±) (max) (V) |
5.25 |
Iq (max) (mA) |
1.8 |
Dynamic range (typ) (dB) |
95 |
Reference type |
Ext, External |
Full-scale output voltage (min) (±V) |
0.12 |
Full-scale output voltage (max) (±V) |
5.05 |
Conformity error (initial 5 decades) (max) (%) |
1.4 |
Conformity error (initial 5 decades) (typ. over temp) (%/°C) |
2 |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Catalog |

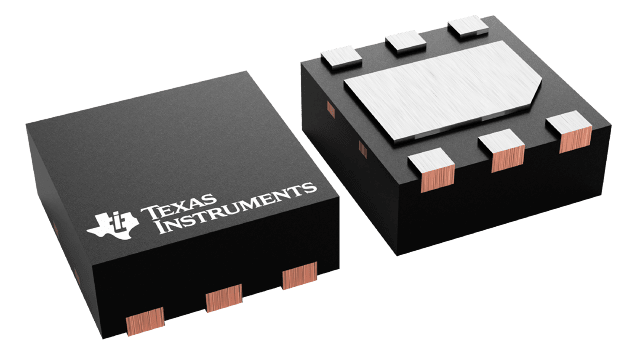

WSON (DRV)-6-4 mm² 2 x 2
The LOG305 is a Log Detector / RSSI Detector with very low power consumption. This device supports an input frequency from 200kHz to 100MHz and a typical dynamic range of 95dB. The LOG305 can support beyond these frequencies at reduced sensitivity. The LOG305 is intended for use in applications that require a wide dynamic range of voltage and signal measurement. This device supports single ended inputs and unipolar or bipolar supplies.
The LOG305 is available in a 6-pin DRV package. The LOG305 is operational from a 2.7V to 5.25V supply and over the full ambient temperature range of –40°C to +125°C.
