LMH9226
  • LMH9226
  • LMH9226

LMH9226

ACTIVE

Single-ended to differential 2.3 - 2.9 GHz low-power ADC driver with integrated balun

Texas Instruments LMH9226 Product Info

1 April 2026 1

Parameters

Type

Active Balun

Frequency (min) (MHz)

2300

Frequency (max) (MHz)

2900

Gain (typ) (dB)

17

Noise figure (typ) (dB)

3

OIP3 (typ) (dBm)

35

P1dB (typ) (dBm)

17.5

Frequency of harmonic distortion measurement (GHz)

2.6

Supply voltage (V)

3.3

Current consumption (mA)

83

Number of channels

1

Operating temperature range (°C)

-40 to 105

Rating

Catalog

Output enable

Yes

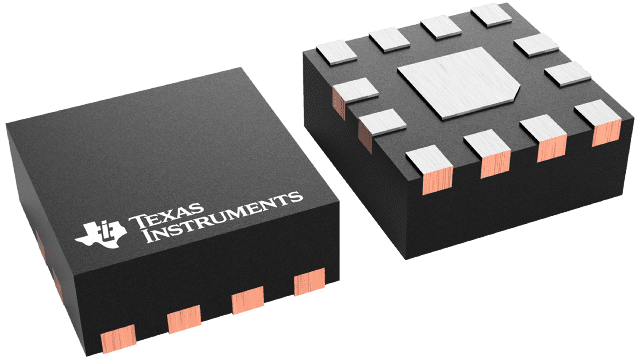

Package

WQFN (RRL)-12-4 mm² 2 x 2

Features

  • Single-channel, single-ended input to differential output RF gain block amplifier
  • Supports 2.6-GHz center frequency with
    400-MHz, 1-dB bandwidth
  • 17-dB typical gain across the 1-dB bandwidth into ZLOAD = 50 Ω
  • Noise figure < 3 dB in 1-dB bandwidth
  • 35-dBm OIP3 at 2-dBm two-tone output power into ZLOAD = 50 Ω
  • 17.5-dBm output P1dB into ZLOAD = 50 Ω
  • 275-mW power consumption on 3.3-V single supply
  • Up to TA = 105°C operating temperature
  • Single-channel, single-ended input to differential output RF gain block amplifier
  • Supports 2.6-GHz center frequency with
    400-MHz, 1-dB bandwidth
  • 17-dB typical gain across the 1-dB bandwidth into ZLOAD = 50 Ω
  • Noise figure < 3 dB in 1-dB bandwidth
  • 35-dBm OIP3 at 2-dBm two-tone output power into ZLOAD = 50 Ω
  • 17.5-dBm output P1dB into ZLOAD = 50 Ω
  • 275-mW power consumption on 3.3-V single supply
  • Up to TA = 105°C operating temperature

Description

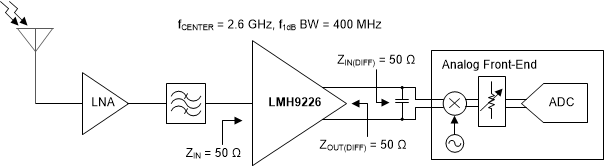

The LMH9226 is high-performance, single-channel, single-ended, 50-Ω input to differential 50-Ω or 100-Ω output RF gain block amplifier supporting a 2.3-GHz to 2.9-GHz frequency band. The device is well suited to meet requirements for 5G m-MIMO or small cell base station applications. The device integrates the functionality of a single-ended input and output RF gain block followed by a passive balun, where the device is mainly used in the final stage of a receiver signal chain to drive the full-scale voltage of an analog-to-differential converter (ADC) differential input.

The LMH9226 provides 17-dB typical gain with excellent linearity performance of 35-dBm output IP3 at 2.6 GHz, and maintains less than a 3-dB noise figure across the entire 1-dB bandwidth of 400 MHz. The device is internally matched for a 50-Ω impedance at the single-ended input. The differential output can easily interface to a 50-Ω impedance without any external matching circuitry. For 100-Ω impedance matching, an external matching circuitry is required that typically results in a 0.3-dB gain loss at 2.6 GHz.

Operating on a single 3.3-V supply, the device consumes approximately 275 mW of stand-by power, making the device suitable for high-density, 5G, massive multiple-input and multiple-output (MIMO) applications. Also, the device is available in a space-saving, 2-mm × 2-mm, 12-pin WQFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. A 1.8-V JEDEC compliant power-down pin is available for fast power-down and power-up of the device that is suitable for time division duplex (TDD) systems.

The LMH9226 is high-performance, single-channel, single-ended, 50-Ω input to differential 50-Ω or 100-Ω output RF gain block amplifier supporting a 2.3-GHz to 2.9-GHz frequency band. The device is well suited to meet requirements for 5G m-MIMO or small cell base station applications. The device integrates the functionality of a single-ended input and output RF gain block followed by a passive balun, where the device is mainly used in the final stage of a receiver signal chain to drive the full-scale voltage of an analog-to-differential converter (ADC) differential input.

The LMH9226 provides 17-dB typical gain with excellent linearity performance of 35-dBm output IP3 at 2.6 GHz, and maintains less than a 3-dB noise figure across the entire 1-dB bandwidth of 400 MHz. The device is internally matched for a 50-Ω impedance at the single-ended input. The differential output can easily interface to a 50-Ω impedance without any external matching circuitry. For 100-Ω impedance matching, an external matching circuitry is required that typically results in a 0.3-dB gain loss at 2.6 GHz.

Operating on a single 3.3-V supply, the device consumes approximately 275 mW of stand-by power, making the device suitable for high-density, 5G, massive multiple-input and multiple-output (MIMO) applications. Also, the device is available in a space-saving, 2-mm × 2-mm, 12-pin WQFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. A 1.8-V JEDEC compliant power-down pin is available for fast power-down and power-up of the device that is suitable for time division duplex (TDD) systems.
