ACTIVE
Number of channels |
1 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
0.5 |
Vos (offset voltage at 25°C) (max) (mV) |
4 |
Iq per channel (typ) (mA) |
2.8 |
Vn at 1 kHz (typ) (nV√Hz) |
23 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Offset drift (typ) (µV/°C) |
3 |
Input bias current (max) (pA) |
500000 |
CMRR (typ) (dB) |
80 |
Iout (typ) (A) |
0.025 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
3 |
Input common mode headroom (to positive supply) (typ) (V) |
-3 |
Output swing headroom (to negative supply) (typ) (V) |
1 |
Output swing headroom (to positive supply) (typ) (V) |
-1 |

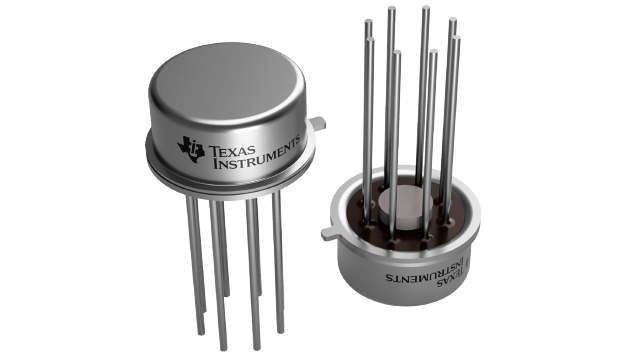

TO-CAN (LMC)-8-80.2816 mm² 8.96 x 8.96
All trademarks are the property of their respective owners.
The LM748 is a general purpose operational amplifier with external frequency compensation.
The unity-gain compensation specified makes the circuit stable for all feedback configurations, even with capacitive loads. It is possible to optimize compensation for best high frequency performance at any gain. As a comparator, the output can be clamped at any desired level to make it compatible with logic circuits.
The LM748 is specified for operation over the −55°C to +125°C military temperature range.
