0
ACTIVE
Architecture |
Voltage FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
34 |

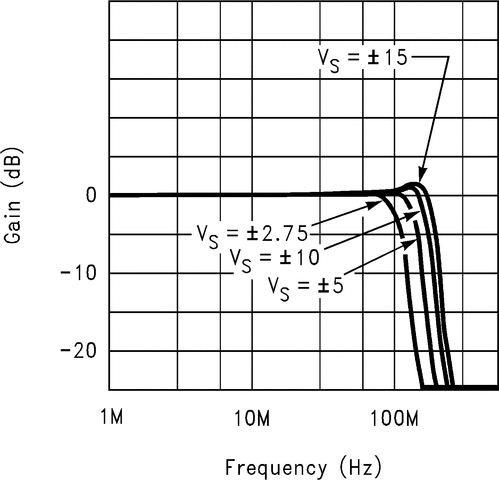

GBW (typ) (MHz) |
100 |
BW at Acl (MHz) |
200 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
3600 |
Vn at flatband (typ) (nV√Hz) |
12 |
Vn at 1 kHz (typ) (nV√Hz) |
12 |
Iq per channel (typ) (mA) |
2.5 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Rail-to-rail |
No |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
110 |
Input bias current (max) (pA) |
3000000 |
Offset drift (typ) (µV/°C) |
6 |
Iout (typ) (mA) |
135 |
2nd harmonic (dBc) |
50 |
3rd harmonic (dBc) |
50 |
Frequency of harmonic distortion measurement (MHz) |
5 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

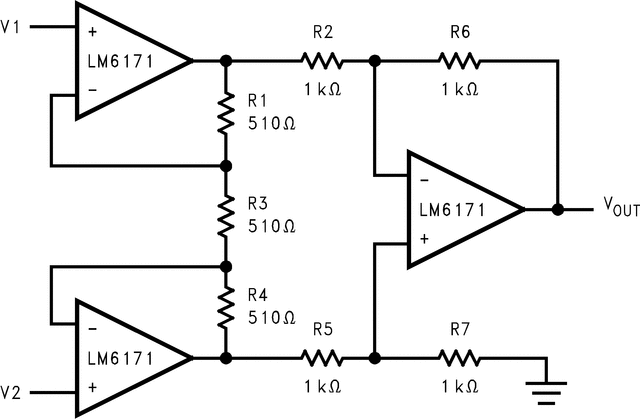

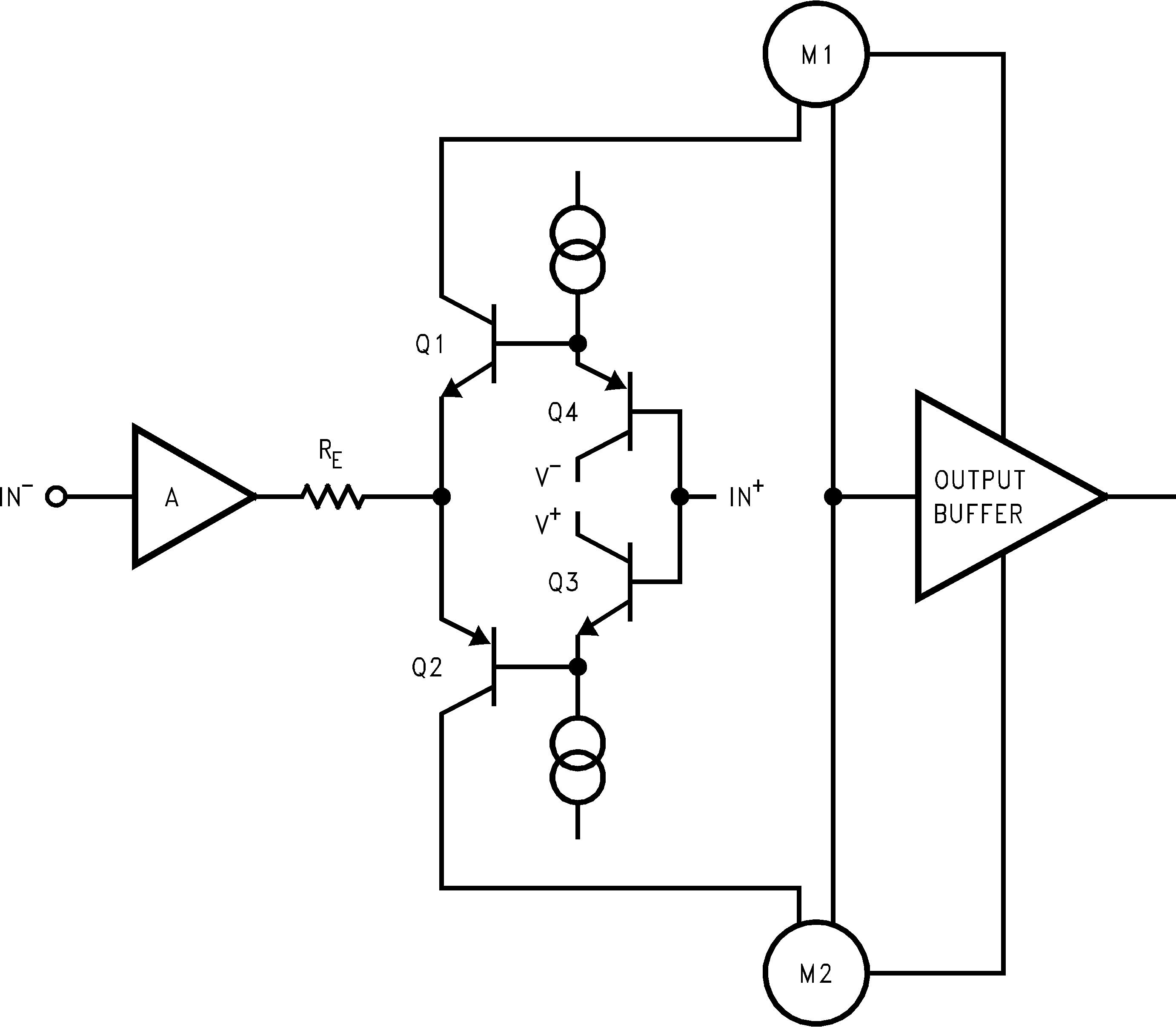

The LM6171 is a high-speed, unity-gain-stable voltage-feedback amplifier. The LM6171 offers a high slew rate of 3600 V/µs and a unity-gain bandwidth of 100 MHz while consuming only 2.5 mA of supply current. The LM6171 has very impressive ac and dc performance that is a great benefit for high-speed signal processing and video applications.
The ±15‑V power supplies allow for large signal swings and give greater dynamic range and signal-to-noise ratio (SNR). The LM6171 has a high output current drive, low spurious-free dynamic range (SFDR) and total harmonic distortion (THD), and is an excellent choice for analog-to-digital converter (ADC) and digital-to-analog converter (DAC) systems. The LM6171 is specified for ±5‑V operation for portable applications.
