ACTIVE
Resolution (Bits) |
12 |
Number of DAC channels |
1 |
Interface type |
SPI |
Output type |
Buffered Voltage |
Output voltage range (V) |
0 to 5.5 |
INL (max) (±LSB) |
1 |
Settling time (µs) |
5 |
Reference type |
Ext |
Architecture |
String |
Rating |
Catalog |
Sample/update rate (Msps) |
0.5 |
Power consumption (typ) (mW) |
0.27 |
Operating temperature range (°C) |
-40 to 105 |
Product type |
General-purpose DAC |
USON (DRN)-12-6 mm² 3 x 2
SPI, QSPI are trademarks of Motorola, Inc.
Microwire is a trademark of National Semiconductor Corp..
All other trademarks are the property of their respective owners.

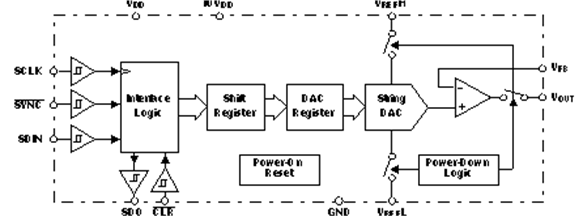

The DAC7551 is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary architecture that minimizes glitch energy. The low-power DAC7551 operates from a single 2.7V to 5.5V supply. The DAC7551 output amplifiers can drive a 2k
, 200pF load rail-to-rail with 5µs settling time; the output range is set using an external voltage reference.
The 3-wire serial interface operates at clock rates up to 50MHz and is compatible with SPI, QSPI, Microwire, and DSP interface standards. The parts incorporate a power-on-reset circuit to ensure that the DAC output powers up to 0V and remains there until a valid write cycle to the device takes place. The part contains a power-down feature that reduces the current consumption of the device to under 2µA.
Small size and low-power operation make the DAC7551 ideally suited for battery-operated, portable applications. The power consumption is typically 0.5mW at 5V, 0.23mW at 3V, and reduces to 1µW in power-down mode.

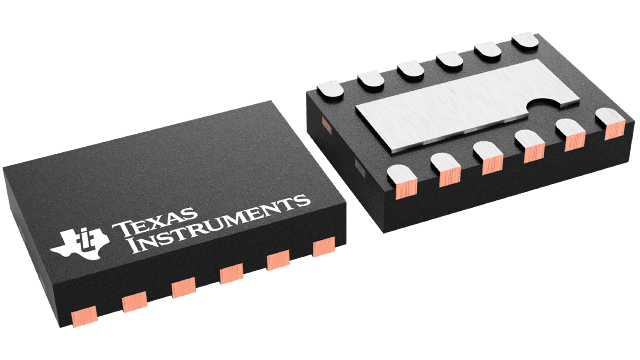

The DAC7551 is available in a 12-lead SON package and is specified over -40°C to +105°C.
