ACTIVE
Rating |
Catalog |
VO (V) |
2, 2.046, 2.048, 2.5, 3, 4.096, 5, 8.192, 10 |
Initial accuracy (max) (%) |
0.1, 0.2, 0.5, 1, 2 |
Iz for regulation (min) (µA) |
45, 60, 62, 68, 74, 91, 100 |
VO adj (min) (V) |
2.048 |
VO adj (max) (V) |
10 |
Reference voltage (V) |
Fixed |
Temp coeff (max) (ppm/°C) |
100, 150 |
Operating temperature range (°C) |
-40 to 85 |
Iout/Iz (max) (mA) |
15 |
SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37

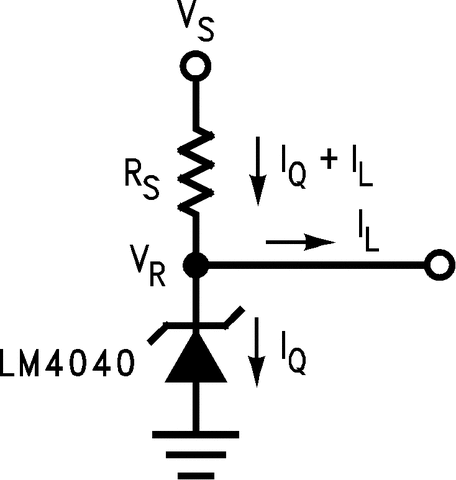

Designed for space-critical applications, the LM4040-N precision voltage reference is available in small SC70 and SOT-23 surface-mount package. The advanced design of the LM4040-N eliminates the need for an external stabilizing capacitor while maintaining stability with any capacitive load, thus making the LM4040-N easy to use. Further reducing design effort is the availability of several fixed reverse breakdown voltages: 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V. The minimum operating current increases from 60µA for the 2.5V LM4040-N to 100µA for the 10V LM4040-N. All versions have a maximum operating current of 15mA.

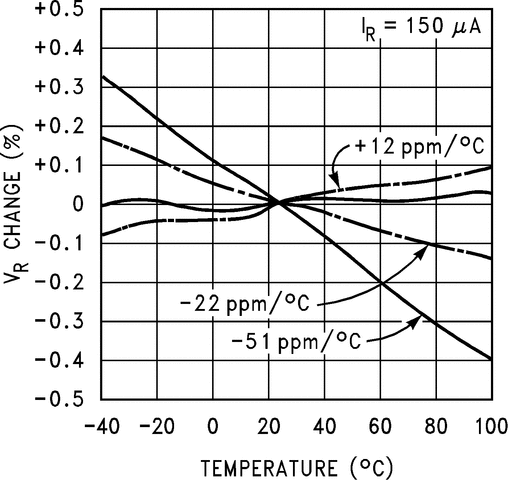

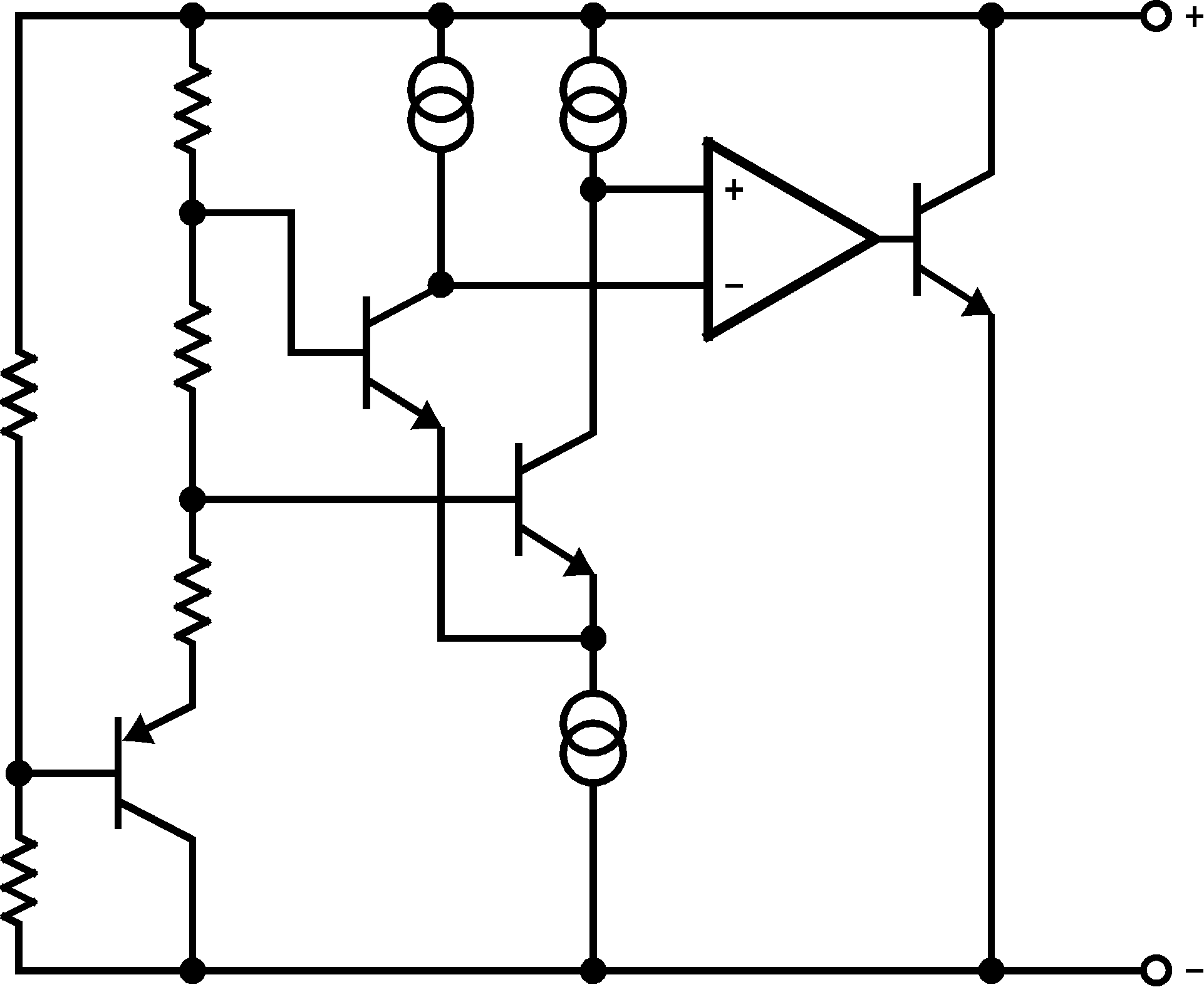

The LM4040-N uses a fuse and Zener-zap reverse breakdown voltage trim during wafer sort to make sure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance provide stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Also available is the LM4041-N with two reverse breakdown voltage versions: adjustable and 1.2V. See the LM4041-N data sheet (SNOS641).
