LM3549

ACTIVE

High power sequential LED driver Key Specifications Key Specifications

Texas Instruments LM3549 Product Info

1 April 2026 3

Parameters

Number of channels

3

LED current per channel (mA)

235

LED configuration

Parallel

Program memory

Yes

Topology

Boost

Programmable ramp control

Yes

Vin (min) (V)

2.7

Vin (max) (V)

5.5

Iout (max) (A)

0.72

Features

I2C control

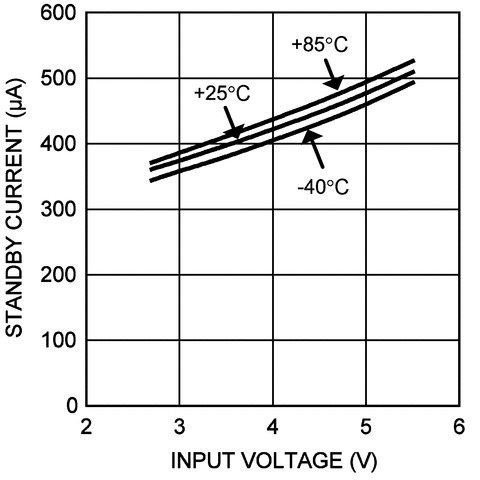

Iq (typ) (mA)

1.6

Shutdown current (ISD) (typ) (µA)

1

Operating temperature range (°C)

-30 to 85

Rating

Catalog

Package

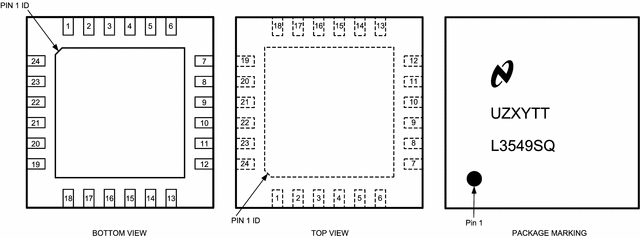

WQFN (RTW)-24-16 mm² 4 x 4

Features

  • Over-Current Protection
  • Over-Temperature Protection
  • I2C Compatible Interface
  • Under-Voltage Lockout
  • LED Open and Short Protection and Detection
  • 95% Peak Efficiency Buck-Boost Converter
  • NVM Memory for Calibration Data and Standalone Usage without I2C Control
  • Soft Start

Key Specifications

  • Integrated buck-boost Converter
  • Programmable LED Drivers
  • 700 mA Maximum Drive Current
  • ±6% Current Accuracy Over Temperature
  • 24-pin WQFN Package

All trademarks are the property of their respective owners.

  • Over-Current Protection
  • Over-Temperature Protection
  • I2C Compatible Interface
  • Under-Voltage Lockout
  • LED Open and Short Protection and Detection
  • 95% Peak Efficiency Buck-Boost Converter
  • NVM Memory for Calibration Data and Standalone Usage without I2C Control
  • Soft Start

Key Specifications

  • Integrated buck-boost Converter
  • Programmable LED Drivers
  • 700 mA Maximum Drive Current
  • ±6% Current Accuracy Over Temperature
  • 24-pin WQFN Package

All trademarks are the property of their respective owners.

Description

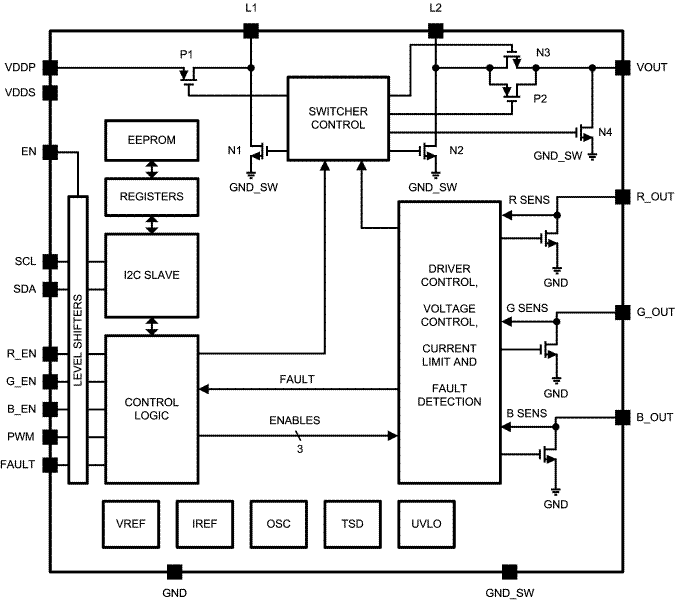

The LM3549 is a high power LED driver with up to 700mA output current. It has three constant current LED drivers and a buck boost SMPS for driving RGB LEDs with high efficiency. LED drivers are designed for sequential drive so only one driver can be enabled at a time.

LED driver output current settings can be stored to integrated non-volatile memory which allows stand-alone operation without I2C interface. Non-volatile memory is rewritable so current setting can be changed if needed.

The LM3549 has a fault detection feature that can detect several different fault conditions. In case of a fault error flags are set and FAULT output sends interrupt to control logic. Error flags can be read through I2C interface.

Total brightness can be controlled with PWM input or with master fader register if I2C interface is used.
